Overview

The default administrator account credentials (admin/admin) provided on the device are clearly insecure. This document explains how to modify the admin password to ensure secure login and how to add user accounts. The steps below show how to replace the default admin credentials and add an account with the appropriate permission level. In practice, default credentials should be changed before deployment and each user should receive only the access required.

What You Will Need

Hardware List:

1x Robustel R1520 Gateway

1x Ethernet Cable

1x Computer

Step-by-Step Configuration Guide

Step 1: Connect to the Gateway and Access the Web Configuration Interface

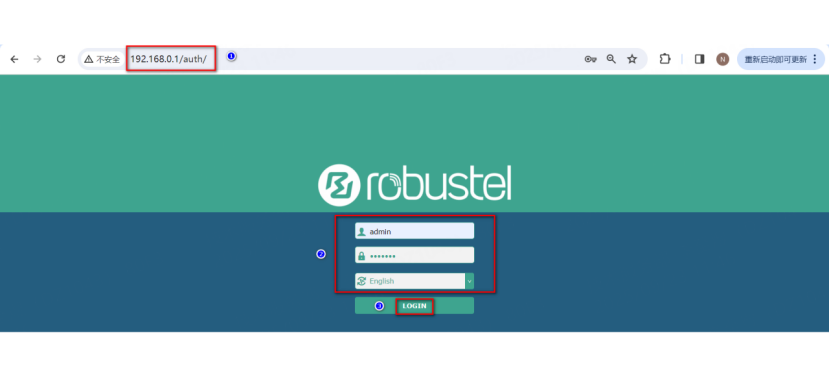

Use an Ethernet cable to connect the R1520 gateway to your computer. Open a browser and enter 192.168.0.1to access the web configuration interface.

Step 2: Change the Administrator Password

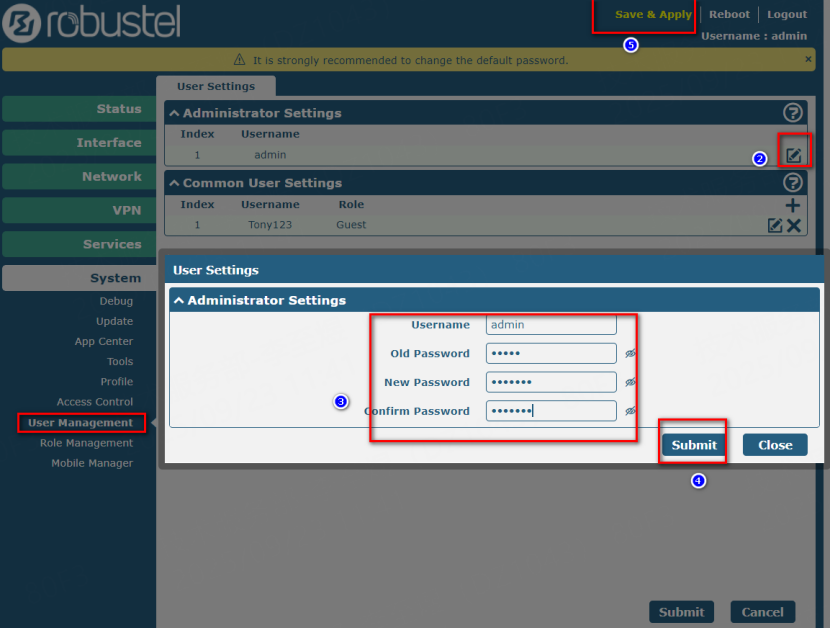

Navigate to System → User Management → Administrator Settings to change the password:

Step 3: Set Up a User Account

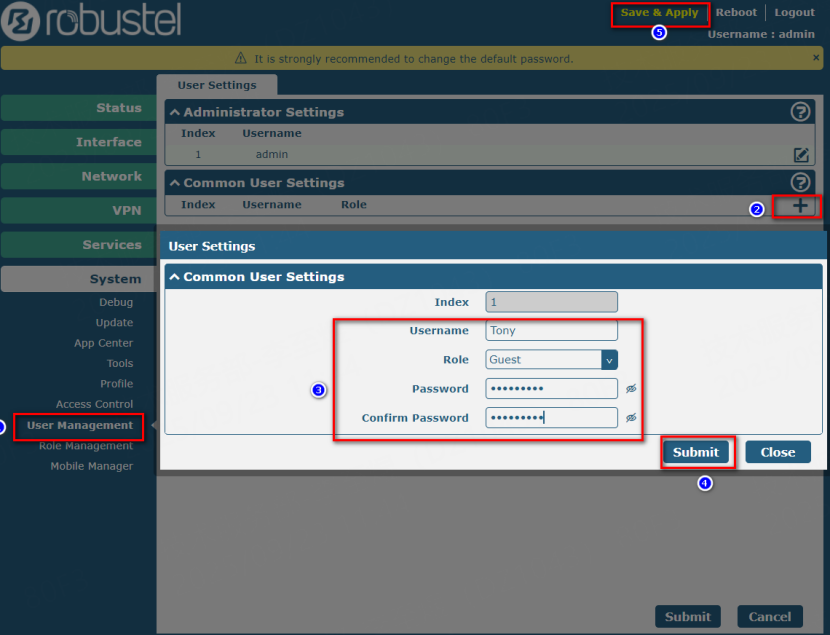

Go to [System] → [User Management] → [Common User Settings] to configure a user account (e.g., for user Tony):

Verification and Testing

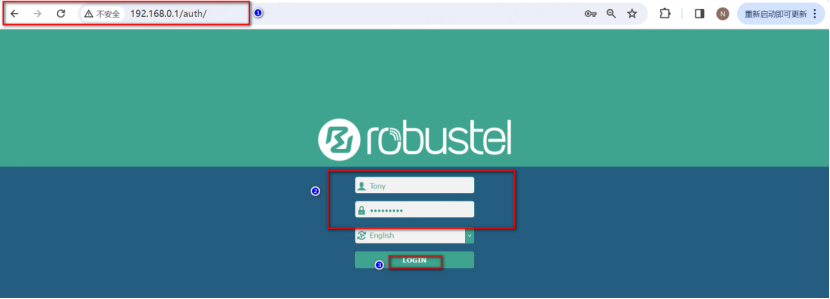

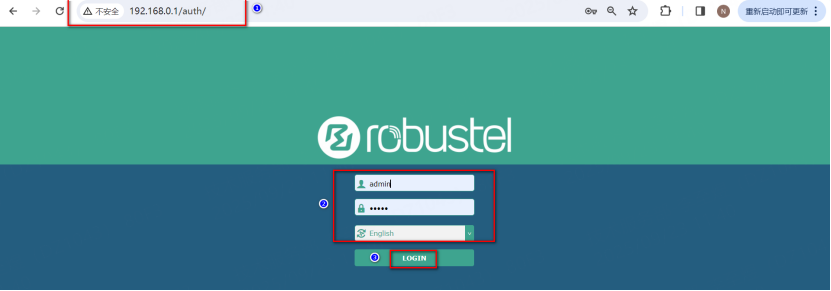

On the main login interface, try logging in using both the admin credentials and the Tony user account credentials to verify successful access:

Troubleshooting / FAQ

Q1: Why do I encounter an error when creating a user?

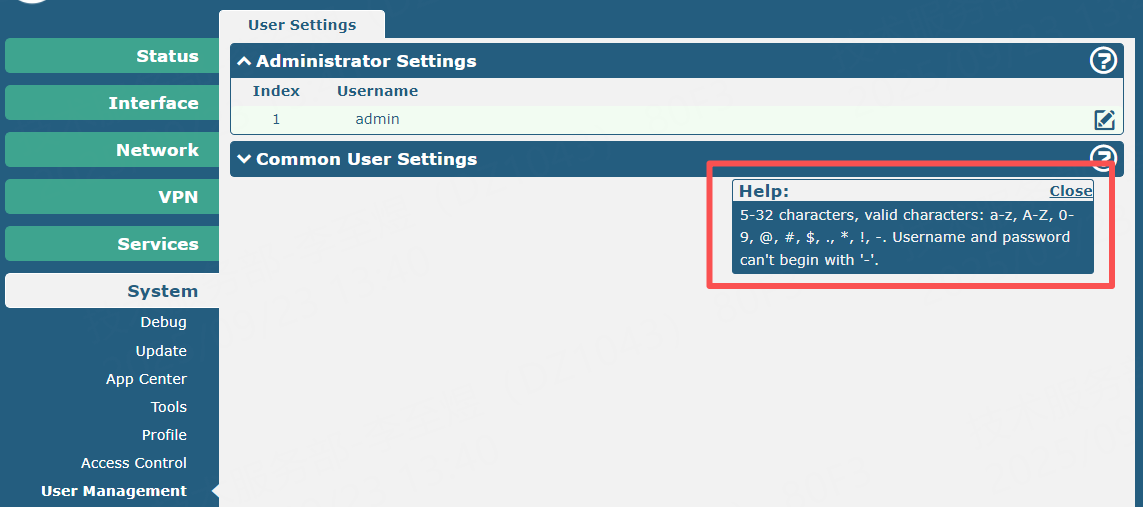

A1: Please refer to the help screenshot below. It is recommended to set a username that combines letters and numbers, such as tony123.

Conclusion

Revision History
