Overview

In industrial IoT labs, private LoRaWAN networks, field demonstrations, and edge deployments, relying on a cloud-based LoRaWAN Network Server is not always feasible. Connectivity may be limited, the customer may require local data processing, or the solution may need to continue operating inside an isolated network.

This guide explains how to deploy The Things Stack Open Source Edition locally on a Robustel EG3120 edge gateway and connect a Robustel R1320LG LoRaWAN gateway to the EG3120 as its local LoRaWAN Network Server (LNS).

After completing this guide, you will be able to:

• Install Docker Engine and Docker Compose on the EG3120.
• Deploy The Things Stack with PostgreSQL and Redis.
• Configure the required ports for Console, MQTT, gRPC, UDP Packet Forwarder, and LoRa Basics Station.
• Create the initial administrator account and Console OAuth client.
• Create an application, gateway, and OTAA end device in The Things Stack Console.
• Configure the R1320LG gateway to connect to the EG3120 LNS.
• Verify gateway connection, OTAA join, uplink traffic, and downlink traffic.
• Troubleshoot common deployment and connectivity issues.

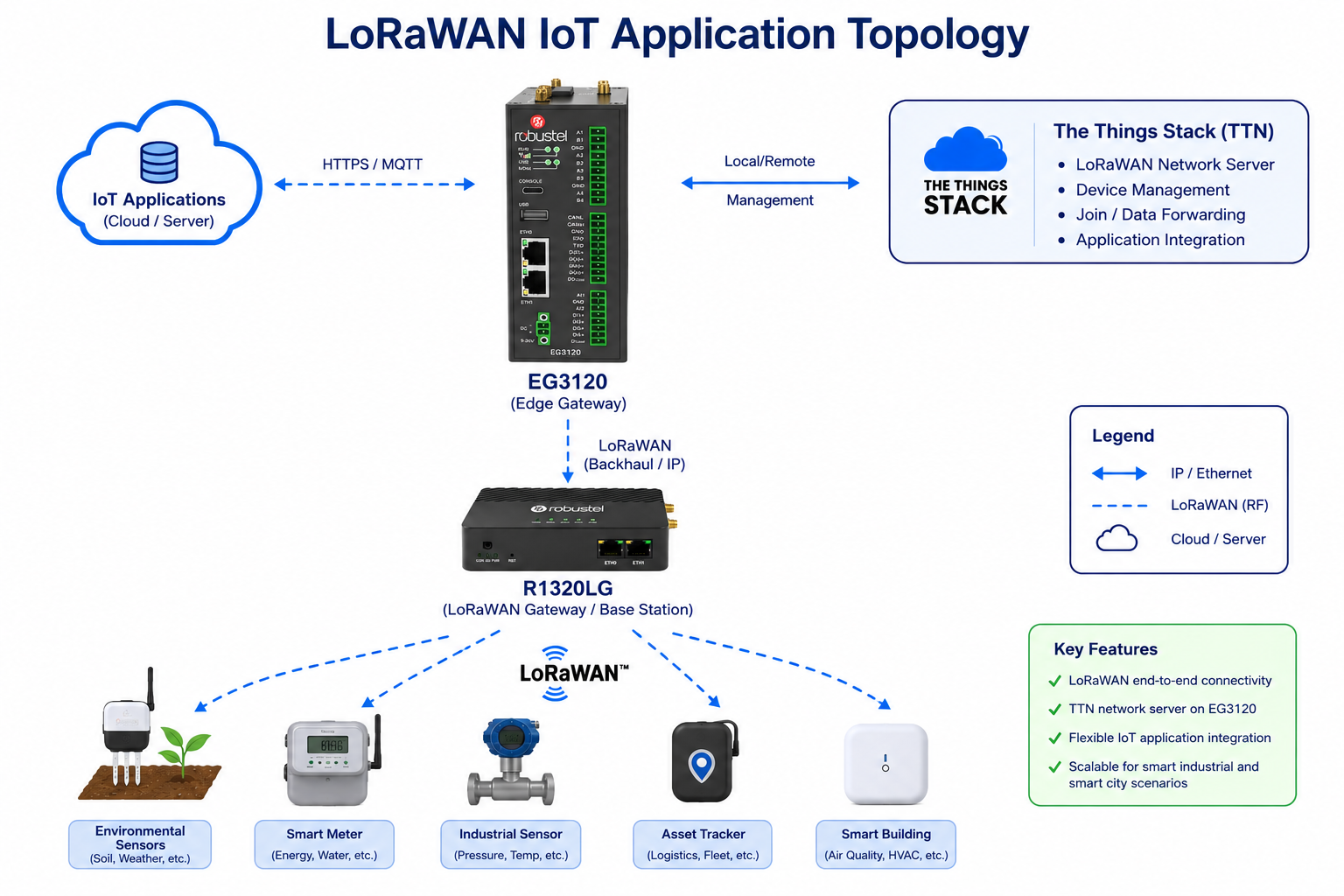

Network Topology

Example addressing used in this guide:

Note: The R1320LG should use the EG3120 field network address, for example 172.17.100.55, because the gateway is connected to the 172.17.100.x network. The 192.168.0.1 address is normally used only for direct local maintenance from a laptop.

What You'll Need

• Hardware List:
• 1 x Robustel EG3120 edge gateway acting as the LNS server.
• 1 x Robustel R1320LG LoRaWAN gateway.
• 1 x Standard LoRaWAN end device. OTAA is recommended.
• Proper LoRa antennas for both the R1320LG gateway and the LoRaWAN end device.
• Software/Firmware Requirements:
• EG3120 running RobustOS Pro with Debian-based Linux.
• R1320LG firmware supporting LoRa Basics Station or UDP Packet Forwarder.
• Docker Engine.
• Docker Compose plugin.
• The Things Stack Open Source Edition.
• SSH client.
• Web browser.
• Minimum EG3120 System Requirements:
• CPU: dual-core minimum, quad-core recommended.
• RAM: 2 GB minimum, 4 GB or higher recommended.
• Storage: 8 GB free minimum, 16 GB or higher recommended.
• Correct system time.
• Working DNS resolution.
• Internet connectivity for online installation, unless using offline Debian packages and preloaded Docker images.
• Network Requirements:
• Use a static IP address or stable DNS name for the EG3120 before generating certificates.
• Ensure the R1320LG can reach the EG3120 field network address.
• Ensure the required TCP and UDP ports are allowed by the EG3120 firewall and any upstream firewall.

Required ports:

If an existing MQTT broker already uses 127.0.0.1:1883, map The Things Stack Application MQTT to another external port, for example 18830.

Step-by-Step Configuration Guide

Phase 1: Install Docker and Compose on the EG3120

1. Connect to the EG3120 via SSH. If a sudo user has not been created, refer to the Robustel Knowledge Base article: How to Create a Sudo User with SSH Access on an EG Series Device.

1 ssh robustel@192.168.0.1

2. Update the package index and install prerequisite tools.

1 sudo apt-get update
2 sudo apt-get install -y ca-certificates curl gnupg lsb-release

3. Create the Docker apt keyring directory.

1 sudo install -m 0755 -d /etc/apt/keyrings

4. Add Docker's official GPG key.

1 curl -fsSL https://download.docker.com/linux/debian/gpg | \
2   sudo gpg --dearmor -o /etc/apt/keyrings/docker.gpg
3 sudo chmod a+r /etc/apt/keyrings/docker.gpg

5. Add Docker's official apt repository.

1 echo \
2   "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] https://download.docker.com/linux/debian \
3 $(. /etc/os-release && echo "$VERSION_CODENAME") stable" | \
4   sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

6. Install Docker Engine and the Docker Compose plugin.

1 sudo apt-get update
2 sudo apt-get install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

7. Enable and start Docker.

1 sudo systemctl enable docker
2 sudo systemctl start docker

8. Verify the installation.

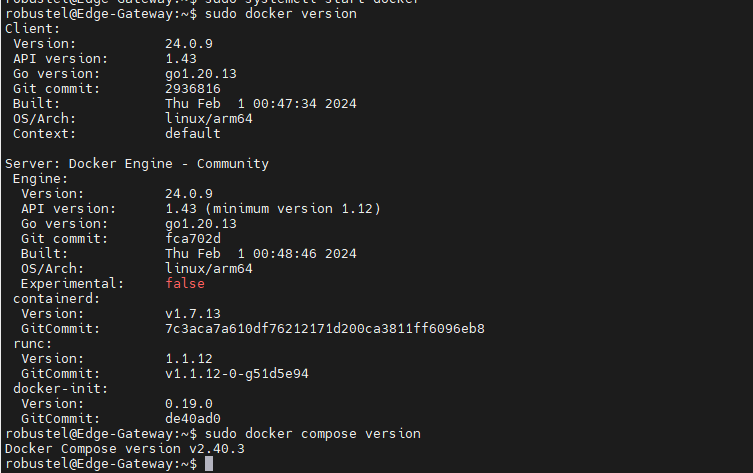

1 sudo docker version
2 sudo docker compose version

Expected output:

1 Docker Server: 24.x.x
2 Docker Compose version v2.x.x

Phase 2: Deploy The Things Stack

1. Create the deployment directory and navigate into it.

1 sudo mkdir -p /opt/tts
2 sudo chown -R "$USER":"$USER" /opt/tts
3 cd /opt/tts

2. Download the official Docker Compose file from The Things Stack repository.

1 curl -L -o docker-compose.yml \
2   https://raw.githubusercontent.com/TheThingsNetwork/lorawan-stack/v3.36.1/docker-compose.yml

This guide pins The Things Stack to the validated 3.36.1 release. Review release notes and retest the deployment before changing this version.

3. Replace the downloaded development-oriented Compose content with the following validated edge deployment layout. Set the same PostgreSQL password here and in is.database-uri in the next configuration file.

 1 services:
 2   postgres:
 3     image: postgres:15-alpine
 4     container_name: tts-postgres
 5     restart: unless-stopped
 6     environment:
 7       POSTGRES_USER: ttn
 8       POSTGRES_PASSWORD: REPLACE_DB_PASSWORD
 9       POSTGRES_DB: ttn_lorawan
10     volumes:
11       - ./data/postgres:/var/lib/postgresql/data
12
13   redis:
14     image: redis:7-alpine
15     container_name: tts-redis
16     restart: unless-stopped
17     command: redis-server --appendonly yes
18     volumes:
19       - ./data/redis:/data
20
21   stack:
22     image: thethingsnetwork/lorawan-stack:3.36.1
23     container_name: tts-stack
24     restart: unless-stopped
25     depends_on:
26       - postgres
27       - redis
28     entrypoint: ttn-lw-stack -c /config/ttn-lw-stack.yml
29     command: start
30     volumes:
31       - ./config:/config:ro
32       - ./data/blob:/srv/ttn-lorawan/public/blob
33     ports:
34       - "1700:1700/udp"
35       - "1881:1881"
36       - "1882:1882"

The mapping 18830:1883 is only needed when another MQTT service on EG3120 already occupies port 1883.

4. Create the configuration directory and data directory.

1 mkdir -p config/certs data/blob data/postgres data/redis

5. Generate the cluster key and cookie keys for The Things Stack.

1 openssl rand -hex 32
2 openssl rand -hex 32
3 openssl rand -hex 64

Use the first value as the cluster key, the second value as block-key, and the third value as hash-key in the configuration file.

6. Create the The Things Stack configuration file.

1 nano config/ttn-lw-stack.yml

Example configuration:

 1 log:
 2   level: info
 3
 4 cluster:
 5   name: eg3120
 6   keys:
 7     - "REPLACE_WITH_32_BYTE_CLUSTER_KEY"
 8
 9 http:
10   listen: ":1885"
11   cookie:
12     block-key: "REPLACE_WITH_32_BYTE_HEX"
13     hash-key: "REPLACE_WITH_64_BYTE_HEX"
14
15 grpc:
16   listen: ":1884"
17
18 redis:
19   address: "redis:6379"
20
21 cache:
22   service: redis
23   redis:
24     address: "redis:6379"
25
26 events:
27   backend: redis
28   redis:
29     address: "redis:6379"
30
31 is:
32   database-uri: "postgresql://ttn:REPLACE_DB_PASSWORD@postgres:5432/ttn_lorawan?sslmode=disable"
33   network:
34     net-id: "000000"
35   email:
36     sender-name: "EG3120 The Things Stack"

Replace the following values before starting the stack:

The js.join-eui-prefix and console.ui.dcs.base-url settings are required for the normal Console registration workflow. Without the matching JoinEUI prefix, the Join Server does not advertise ownership of the device's JoinEUI. Without the DCS base URL, the Console may generate http://localhost:1885/api/v3 for the Device Claiming API; a browser on another computer then sends the request to that computer instead of the EG3120, and the Confirm button reports that the JoinEUI could not be confirmed.

7. Generate local TLS certificates for secure LoRa Basics Station communication.

 1 cd /opt/tts/config/certs
 2
 3 openssl genrsa -out ca.key 4096
 4 openssl req -x509 -new -nodes -key ca.key -sha256 -days 3650 -out ca.pem \
 5   -subj "/C=CN/ST=Shanghai/L=Shanghai/O=Robustel/OU=EG3120/CN=EG3120 TTS CA"
 6
 7 openssl genrsa -out server.key 4096
 8 cat > server.cnf <<'EOF'
 9 [req]
10 default_bits = 4096
11 prompt = no
12 default_md = sha256
13 distinguished_name = dn
14 req_extensions = req_ext
15
16 [dn]
17 C = CN
18 ST = Shanghai
19 L = Shanghai
20 O = Robustel
21 OU = EG3120
22 CN = 172.17.100.55
23
24 [req_ext]
25 subjectAltName = @alt_names
26
27 [alt_names]
28 IP.1 = 172.17.100.55
29 DNS.1 = tts-eg3120.local
30 EOF
31
32 openssl req -new -key server.key -out server.csr -config server.cnf
33 openssl x509 -req -in server.csr -CA ca.pem -CAkey ca.key -CAcreateserial \
34   -out server.pem -days 3650 -sha256 -extensions req_ext -extfile server.cnf
35
36 cd /opt/tts

Important certificate rules:

• If the R1320LG connects to wss://172.17.100.55:8887, the server certificate must include IP.1 = 172.17.100.55.
• If the R1320LG connects to a DNS name, the server certificate must include that DNS name.
• Upload ca.pem to the R1320LG as the Basic Station trust certificate.
• If the EG3120 IP address changes, regenerate the server certificate and update the R1320LG LNS address.

8. Start PostgreSQL and Redis.

1 docker compose up -d postgres redis

9. Initialize the The Things Stack databases.

1 docker compose run --rm stack is-db migrate
2 docker compose run --rm stack js-db migrate
3 docker compose run --rm stack ns-db migrate --force
4 docker compose run --rm stack as-db migrate --force

10. Create the initial administrator account.

1 docker compose run --rm stack is-db create-admin-user \
2   --id admin \
3   --email admin@example.com

Follow the password prompt and store the credentials securely.

11. Create the Console OAuth client.

1 docker compose run --rm stack is-db create-oauth-client \
2   --id console \
3   --name "Console" \
4   --owner admin \
5   --secret console \
6   --redirect-uri "http://172.17.100.55:1885/console/oauth/callback" \
7   --redirect-uri "/console/oauth/callback" \
8   --logout-redirect-uri "http://172.17.100.55:1885/console" \
9   --logout-redirect-uri "/console"

12. Start all The Things Stack services.

1 docker compose up -d

13. Verify the deployment.

1 docker ps
2 docker compose ps

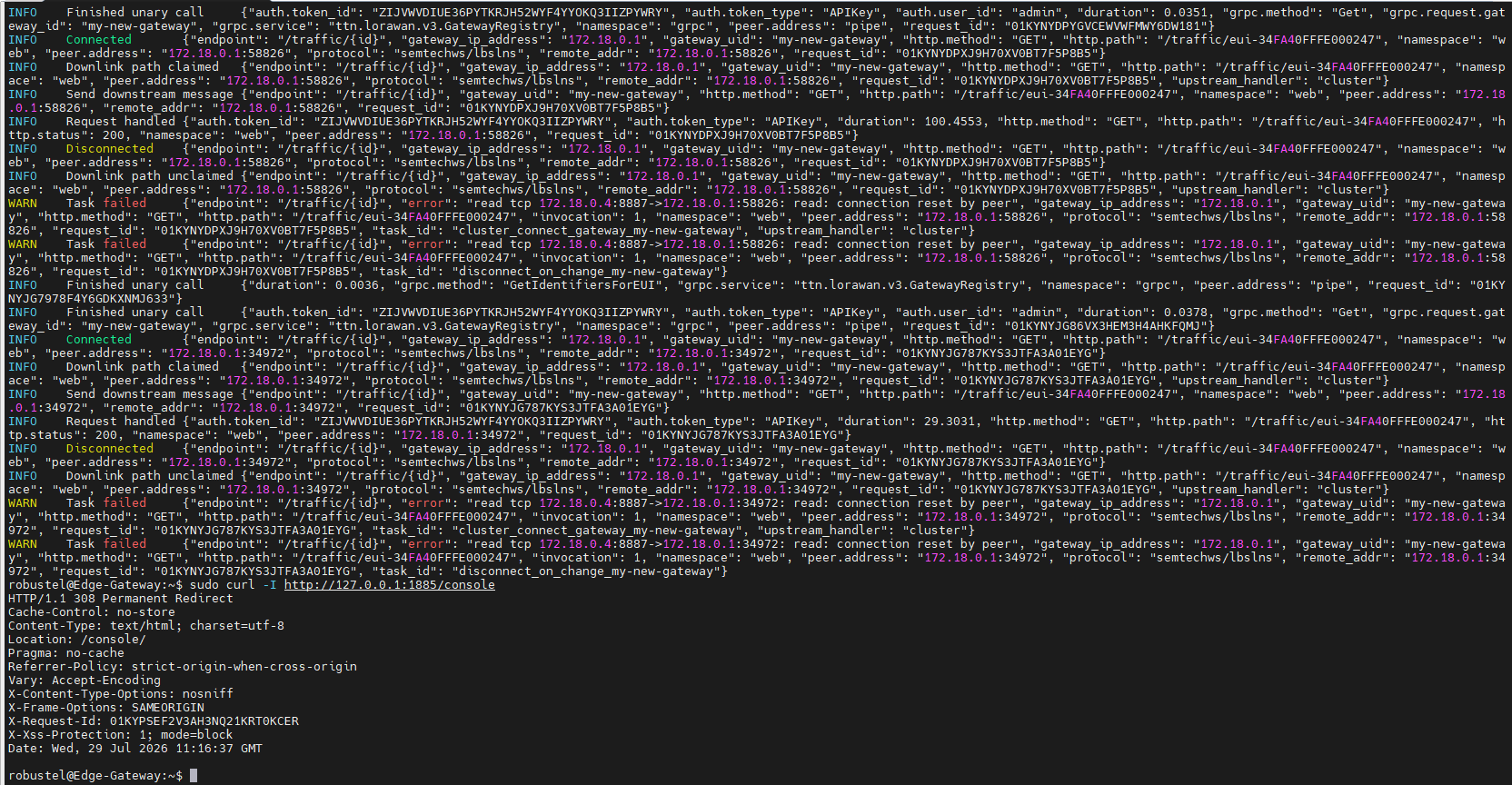

3 docker logs --tail 100 tts-stack
4 curl -I http://127.0.0.1:1885/console

A redirect to /console/ is expected from the HTTP check.

Phase 3: Configure The Things Stack Console

1. Open a web browser and navigate to the TTS Console URL.

1 http://172.17.100.55:1885/console

2. Log in using the administrator credentials created in Phase 2.

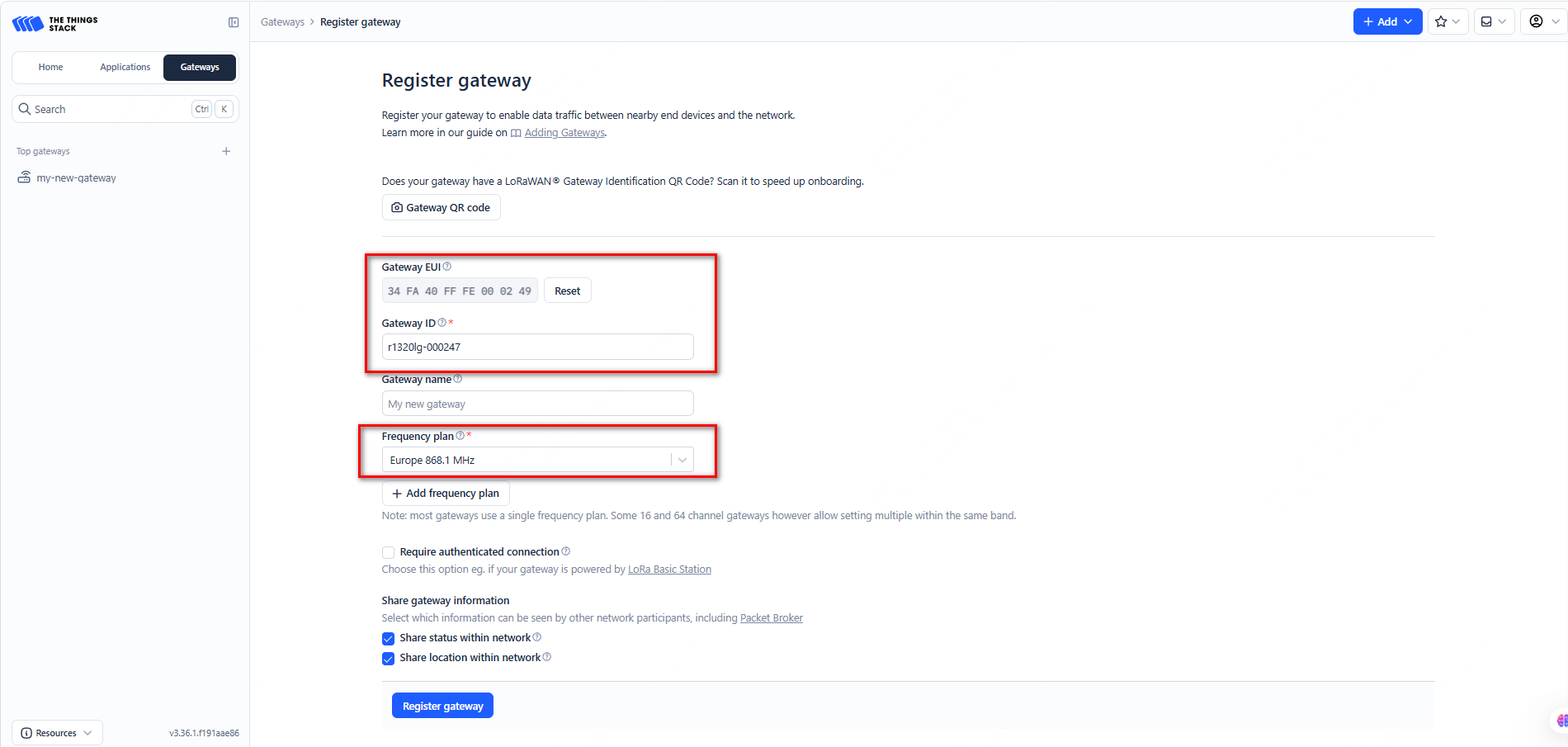

3. Navigate to Gateways and click Add gateway.
4. Enter a Gateway ID.

Example:

1 r1320lg-000247

5. Enter the R1320LG Gateway EUI.

Example:

1 34FA40FFFE000247

The Gateway EUI is normally printed on the device label or shown in the R1320LG web UI. It may also appear in the Basic Station log as:

1 Station EUI : 34fa:40ff:fe00:0247

Enter it in The Things Stack without separators:

1 34FA40FFFE000247

6. Select the frequency plan.

Example:

1 Europe 868.1 MHz

The frequency plan must match the R1320LG radio region and the end device region.

7. Select LoRa Basics Station as the connection method and save the gateway.
8. Generate a gateway API key with the required gateway traffic rights.

Save this key securely. It will be used as the TC Key or Client key on the R1320LG.

Example key format:

1 NNSXS.xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

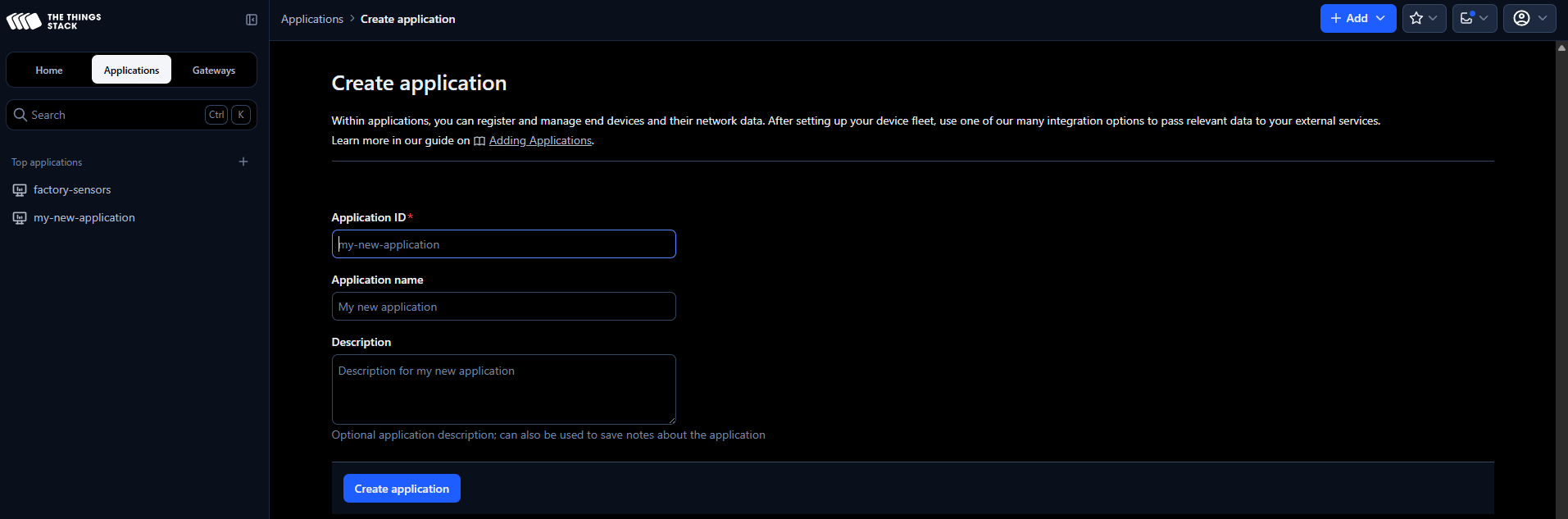

9. Navigate to Applications and create a new application.


Example:

1 factory-sensors

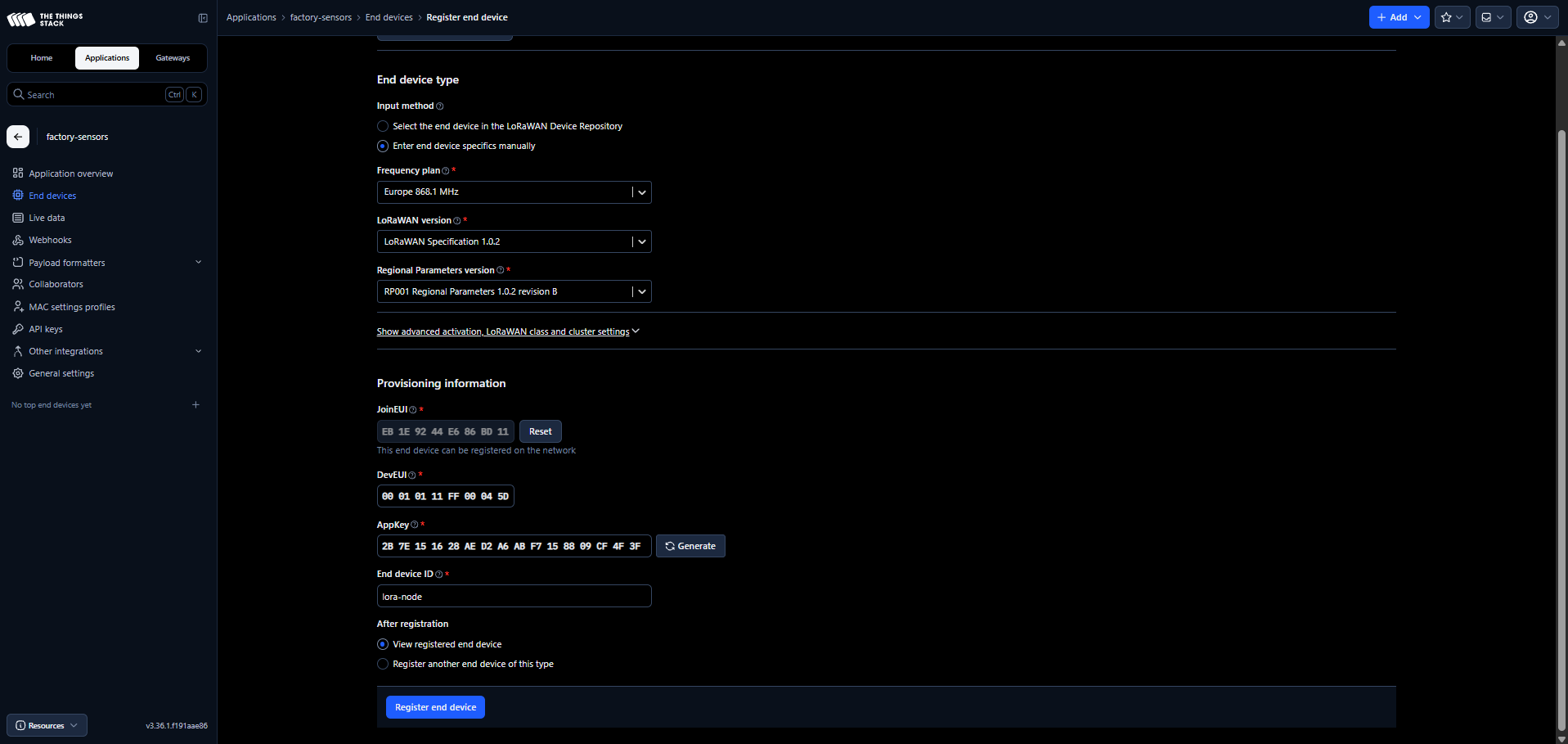

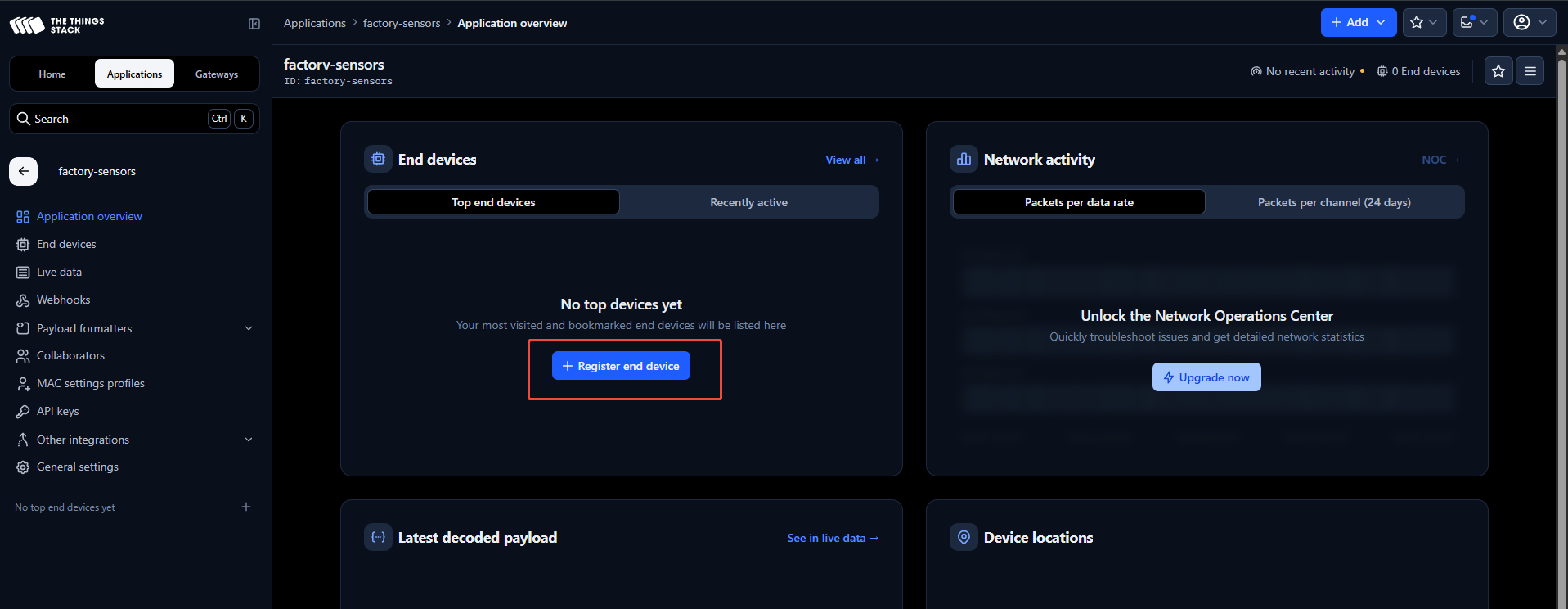

10. Open the application and click Register end device.

11. Select manual registration or the device repository profile if available.
12. For manual registration, select the frequency plan, LoRaWAN version, and Regional Parameters version that match the physical device.
13. Enter the JoinEUI and click Confirm. A correct local deployment displays:

1 This end device can be registered on the network

If the Console reports that the JoinEUI could not be confirmed, do not bypass this step. Check the js.join-eui-prefix and console.ui.dcs.base-url settings described in Phase 2, restart the stack, refresh the browser page, and retry.

14. Register the OTAA sensor by entering its DevEUI, AppKey, and End device ID.

Example values:

The JoinEUI, DevEUI, and AppKey must exactly match the values configured in the physical end device.

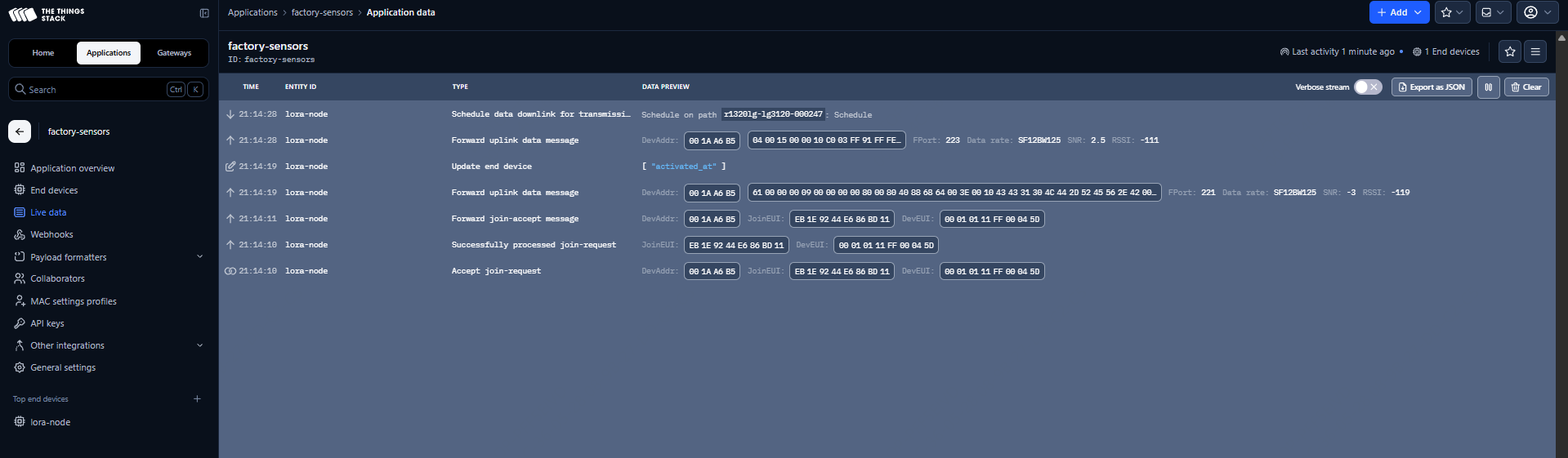

15. After registration, trigger a new OTAA join from the physical end device. Do not use the Generate button for AppKey unless the generated value is also written to the physical device.

Open Source Edition Note: The Things Stack Open Source Edition is typically deployed as a single-tenant environment. Tenant creation is relevant to multi-tenant editions and hosted deployments. For this EG3120 Open Source deployment, create applications, gateways, and end devices directly under the local administrator account.

__

Phase 4: Configure the R1320LG Gateway

1. Log in to the R1320LG web interface.
2. Navigate to the LoRaWAN Basic Station page.

1 Packet Forwarder / Basic Station

3. Configure the R1320LG for LoRa Basics Station.

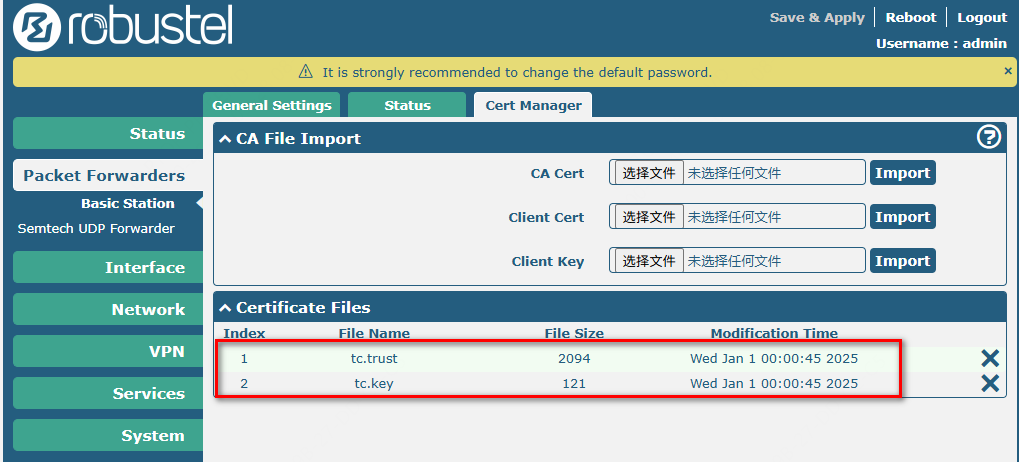

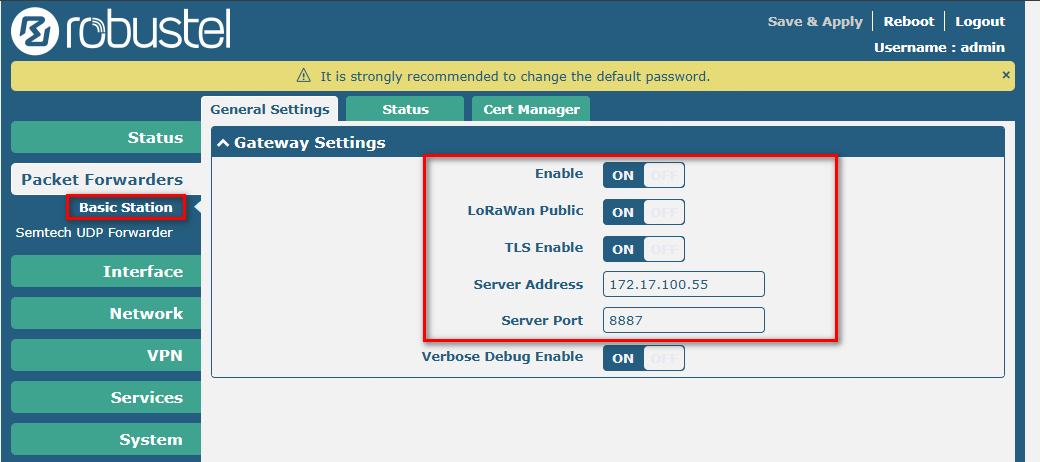

4. Upload the ca.pem file generated on the EG3120 into the Trust certificate field.
5. Paste the gateway API key generated in The Things Stack into the Client key / TC key field.
6. Save and apply the configuration.
7. Restart the Basic Station service if required.

Expected R1320LG log:

1 Connecting to INFOS: wss://172.17.100.55:8887
2 LNS protocol established
3 router_config received

Verification & Testing

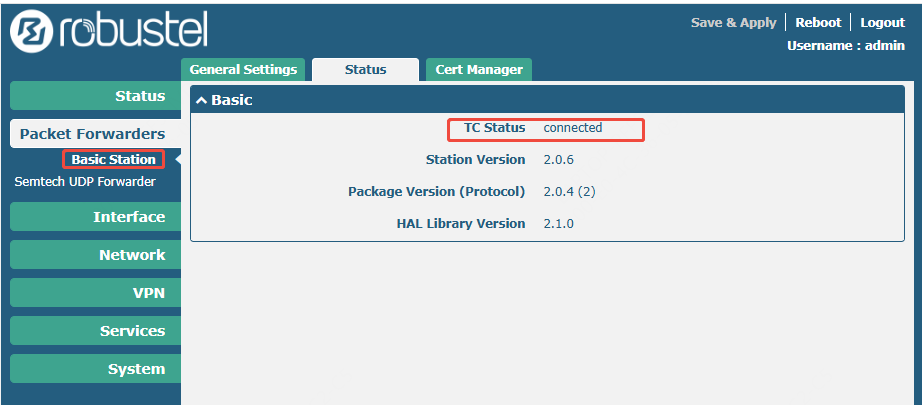

To confirm that the configuration is successful, verify the gateway connection first, then verify OTAA join, uplink, and downlink traffic.

Testing Method:

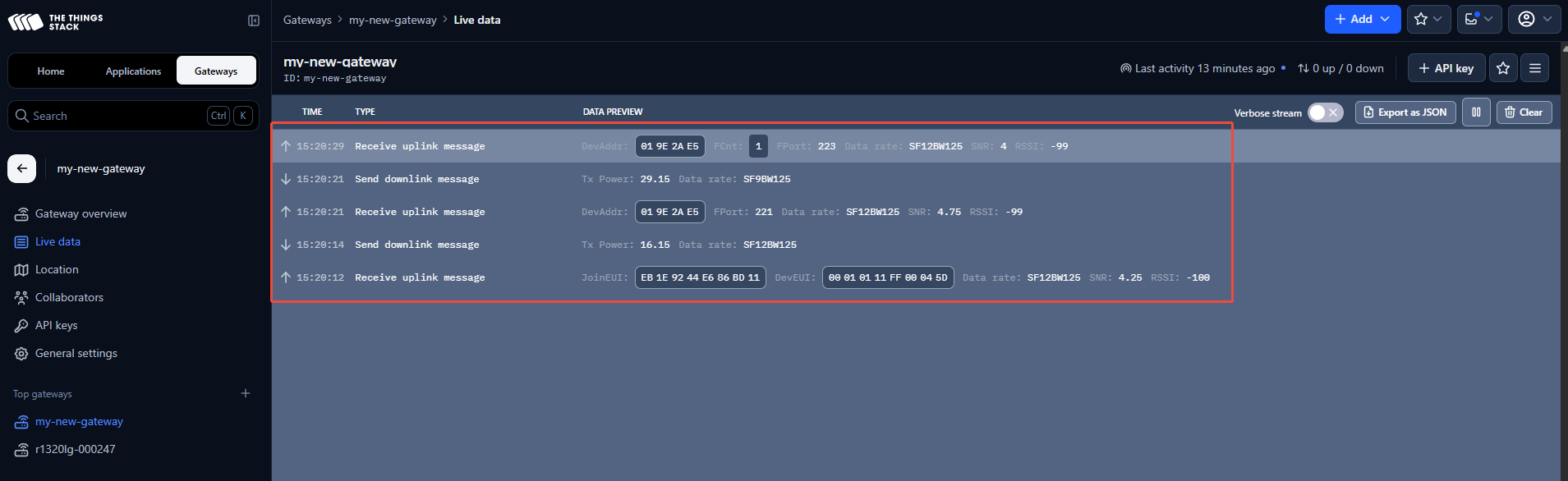

Restart or trigger the LoRaWAN end device to force it to send a Join Request. For a battery-powered sensor, use the vendor's documented restart or join-trigger method.

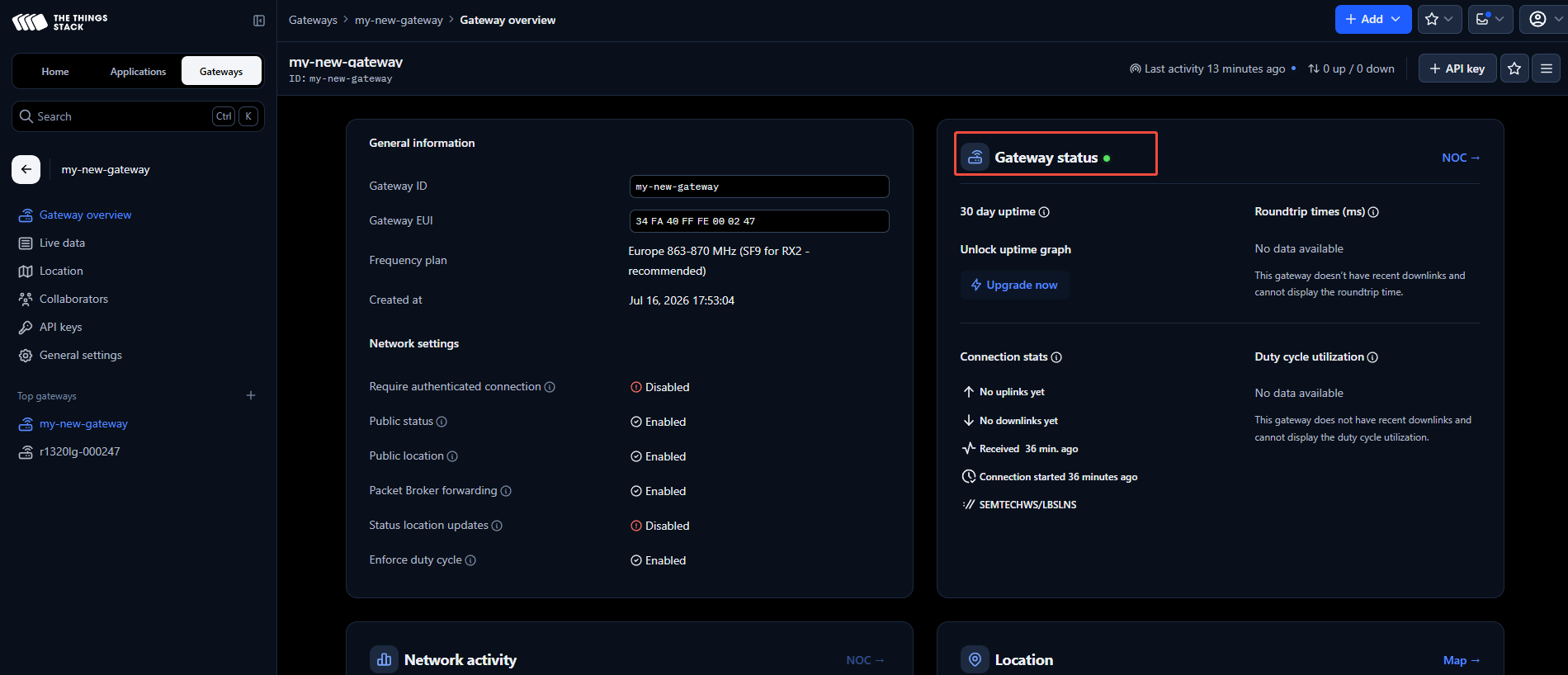

Check Gateway Online Status:

1. In The Things Stack Console, go to Gateways.


2. Open the Live data tab.

Expected gateway events:

1 Gateway connection established
2 Status received
3 Uplink message received
4 Downlink message scheduled

Check OTAA Join:

1. In The Things Stack Console, go to Applications.
2. Open the application and select the end device.
3. Open the Live data tab.

Expected OTAA events:

1 Accept join-request
2 Successfully processed join-request
3 Forward join-accept message

Check R1320LG Basic Station Status:

Check Downlink Traffic:

1. In The Things Stack Console, open the end device.
2. Go to Messaging.
3. Queue a downlink message.
4. For a Class A device, wait for the next uplink because the downlink is transmitted after the device opens its receive window.

Expected downlink events:

1 Schedule downlink message
2 Forward downlink message

Troubleshooting / FAQ

Q: The Console says, "There was an error and the JoinEUI could not be confirmed." How do I fix it?

A: This message is normally caused by local Join Server or Device Claiming API configuration, not by the hexadecimal format of the JoinEUI. Make sure the local Join Server advertises the end device's JoinEUI prefix and make sure the Console DCS URL points to the EG3120, not localhost.

1 js:
2   join-eui-prefix:
3     - "EB1E9244E686BD11/64"
4
5 console:
6   ui:
7     dcs:
8       base-url: "http://172.17.100.55:1885/api/v3"

Restart the stack and verify the JoinEUI prefix API:

1 cd /opt/tts
2 docker compose restart stack
3 curl -s http://127.0.0.1:1885/api/v3/js/join_eui_prefixes

Expected response:

1 {"prefixes":[{"join_eui":"EB1E9244E686BD11","length":64}]}

Then reload the Console and click Confirm again. The page should display This end device can be registered on the network.

Q: The Join Request reaches The Things Stack but Live data reports MIC mismatch. What does this mean?

A: The radio path and gateway forwarding are already working. MIC mismatch means that the Join Server could not validate the Join Request with the root key registered for that DevEUI. In most cases, the AppKey in The Things Stack differs from the AppKey in the physical device. Compare all 32 hexadecimal characters; a one-byte difference is enough to fail. Also confirm the DevEUI and JoinEUI. After correcting the value, restart or retrigger OTAA on the end device.

Example matching values:

1 JoinEUI: EB1E9244E686BD11
2 DevEUI: 00010111FF00045D
3 AppKey: 2B7E151628AED2A6ABF7158809CF4F3F

Q: Why is my R1320LG gateway showing as offline in the Console?

A: Check that the R1320LG can reach the EG3120 field network address. Use the field network address, for example 172.17.100.55, not the laptop-only maintenance address 192.168.0.1. Confirm that port 8887/tcp is open when using Basic Station TLS. Check The Things Stack logs for gateway connection or authentication errors.

Useful commands:

1 ping 172.17.100.55
2 nc -vz 172.17.100.55 8887
3 cd /opt/tts
4 docker compose ps
5 docker logs --tail 100 tts-stack

Q: The Docker container is in a restart loop. What should I check?

A: Check the stack, PostgreSQL, and Redis logs. Common causes include invalid YAML syntax, missing certificate files, incomplete database migrations, and incorrect database URI settings.

1 docker ps -a
2 docker compose logs --tail 200 stack
3 docker compose logs --tail 200 postgres
4 docker compose logs --tail 200 redis

Q: What should I do if port 1883 is occupied on the EG3120?

A: If a local MQTT broker already uses 127.0.0.1:1883, map The Things Stack Application MQTT to another external port in docker-compose.yml, for example:

1 ports:
2   - "18830:1883"

Then set the Application Server MQTT public address accordingly:

1 as:
2   mqtt:
3     public-address: "172.17.100.55:18830"

Q: How do I check whether the EG3120 firewall is blocking the connection?

A: Check the firewall rules and listening ports on the EG3120.

1 sudo ss -lntup
2 sudo iptables -S
3 sudo iptables -L -n -v
4 sudo nft list ruleset

At minimum, confirm that the required ports are open:

1 1700/udp
2 1885/tcp
3 1887/tcp
4 8887/tcp

Q: Why does the R1320LG report gateway authentication failure?

A: Confirm that the Gateway EUI configured on the R1320LG exactly matches the Gateway EUI registered in The Things Stack. Regenerate the gateway API key if needed and upload or paste it into the R1320LG Client key / TC key field. Confirm that the API key has gateway traffic rights.

Q: The gateway is online, but I see no Join Requests from the sensor. What is wrong?

A: Confirm that proper LoRa antennas are attached to both the R1320LG and the end device. Confirm that the end device is in OTAA mode. Confirm that the device region, gateway region, and The Things Stack frequency plan match, for example EU868. Restart or trigger the device to join and check the R1320LG log for jreq.

Q: I see Join Requests, but there is no Join Accept or no downlink. What should I check?

A: Confirm that gateway TX is enabled and that a LoRa antenna is connected. Confirm that the frequency plan and RX2 settings match the device region. Check R1320LG logs for dnmsg, starting TX, and dntxed.

Q: Why do I see DNS or NTP errors on an offline network?

A: If the deployment network has no Internet access, configure local DNS and NTP services. Certificate validation and LoRa Basics Station timing behavior can be affected by incorrect system time.

Common log messages:

1 Can't find host
2 Name or service not known
3 NTP client synchronization failed
4 Time sync rejected

Q: Why does Basic Station report a TLS certificate Common Name or hostname mismatch?

A: The R1320LG server address must match a DNS or IP Subject Alternative Name in the server certificate. If R1320LG connects to wss://172.17.100.55:8887, the server certificate must include:

1 IP.1 = 172.17.100.55

Regenerate the certificate after changing the EG3120 IP address or hostname.

Certificate check commands:

1 openssl x509 -in config/certs/ca.pem -noout -subject -issuer -dates
2 openssl x509 -in config/certs/server.pem -noout -subject -issuer -dates -ext subjectAltName
3 openssl s_client -connect 172.17.100.55:8887 -CAfile config/certs/ca.pem

Q: Can the EG3120 run multiple applications?

A: Yes. The Things Stack supports multiple applications. Actual capacity depends on the number of gateways, number of devices, traffic volume, integrations, payload processing, and EG3120 hardware resources.

Q: How many gateways are supported?

A: There is no single fixed number for all deployments. For small private networks and demonstrations, EG3120 can run The Things Stack for one or several gateways. For larger deployments, validate CPU, memory, storage I/O, and uplink/downlink load under expected traffic.

Q: How do I upgrade The Things Stack?

A: Back up configuration and PostgreSQL data first, review the target release notes, pull the target container image, run database migrations if required, and restart the stack.

Example:

1 cd /opt/tts
2 docker compose pull
3 docker compose run --rm stack is-db migrate
4 docker compose up -d

Q: How do I back up the configuration?

A: Back up the Docker Compose file, The Things Stack configuration file, certificate directory, and PostgreSQL data.

Files to back up:

1 /opt/tts/docker-compose.yml
2 /opt/tts/config/ttn-lw-stack.yml
3 /opt/tts/config/certs/

Example PostgreSQL backup:

1 cd /opt/tts
2 docker compose exec postgres pg_dump -U root ttn_lorawan > ttn-lorawan-backup.sql

Q: Can the deployment run without Internet access?

A: Yes, but the required Docker images, Debian packages, frequency plan files, certificates, and NTP source must be prepared in advance. For offline deployments, use an offline package repository, a local Docker registry, or a preloaded Docker image archive.

Q: Should I use LoRa Basics Station or UDP Packet Forwarder?

A: Use LoRa Basics Station for new deployments. UDP Packet Forwarder is useful for compatibility with legacy gateways, but Basic Station provides stronger security and operational behavior, especially when TLS is enabled.

Q: What should I do if the EG3120 IP address changes?

A: Update the R1320LG LNS server address, The Things Stack Console canonical URL, OAuth redirect URI, public addresses, firewall rules, and TLS server certificate. For stable deployments, use a DNS name instead of a changing IP address.

Useful Commands

Docker and The Things Stack:

1 cd /opt/tts
2 docker ps
3 docker ps -a
4 docker compose ps
5 docker compose logs --tail 200 stack
6 docker compose restart stack
7 docker compose down
8 docker compose up -d

System Logs:

1 journalctl -u docker --no-pager -n 100
2 journalctl -xe --no-pager

Network Checks:

1 ip addr
2 ip route
3 ping 172.17.100.55
4 curl -I http://127.0.0.1:1885/console
5 curl -I http://172.17.100.55:1885/console
6 sudo ss -lntup
7 sudo ss -lnu

Firewall Checks:

1 sudo iptables -S
2 sudo iptables -L -n -v
3 sudo nft list ruleset

Certificate Checks:

1 openssl x509 -in config/certs/ca.pem -noout -subject -issuer -dates
2 openssl x509 -in config/certs/server.pem -noout -subject -issuer -dates -ext subjectAltName
3 openssl s_client -connect 172.17.100.55:8887 -CAfile config/certs/ca.pem

References

• Docker Engine installation documentation for Debian: https://docs.docker.com/engine/install/debian/
• Docker Compose documentation: https://docs.docker.com/compose/
• The Things Stack documentation: https://www.thethingsindustries.com/docs/
• LoRa Basics Station documentation: https://doc.sm.tc/station/
