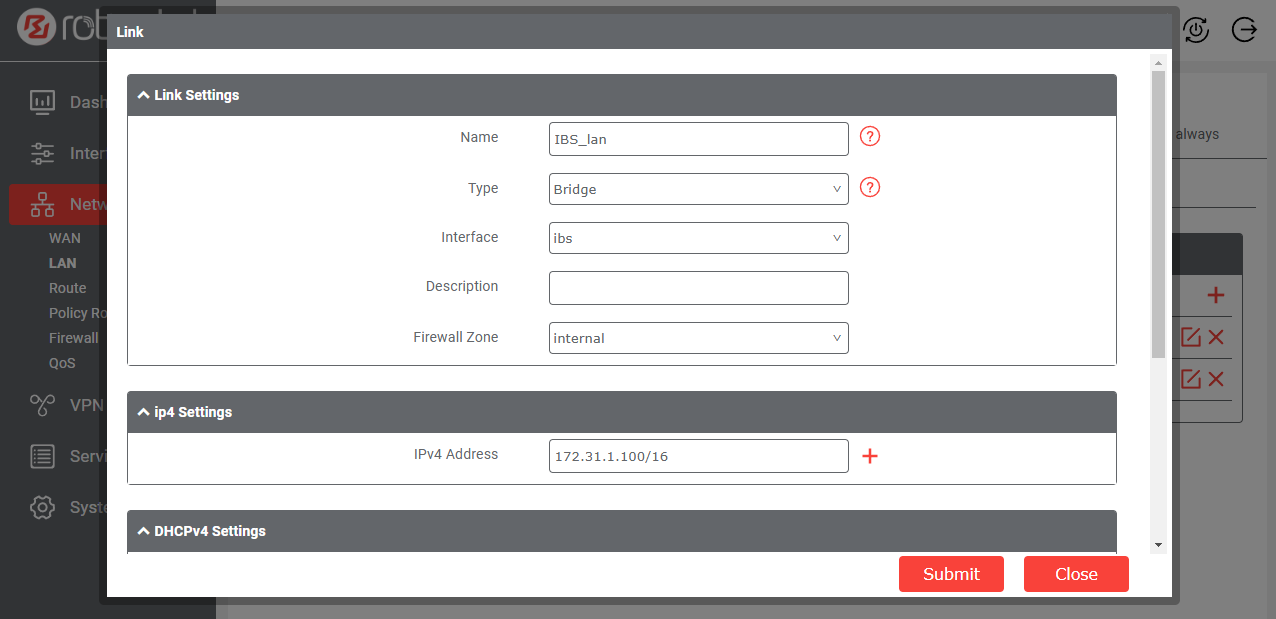

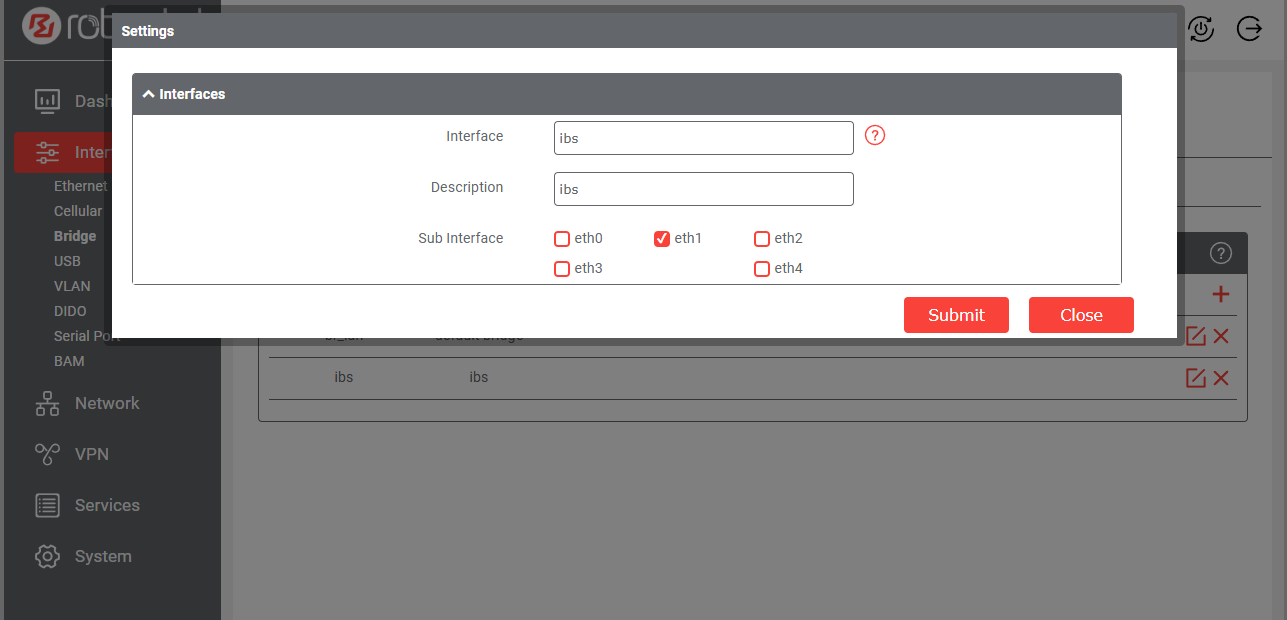

sudo apt update
sudo apt install -y smcroute

2.2 Configure SMCRoute

phyint ibs enable ttl 64
phyint docker0 enable ttl 64
mgroup from ibs group 239.192.0.0/24
mroute from ibs group 239.192.0.0/24 to docker0

2.3 Enable Multicast Forwarding

net.ipv4.conf.all.mc_forwarding = 1
net.ipv4.conf.eth1.mc_forwarding = 1
net.ipv4.conf.ibs.mc_forwarding = 2
net.ipv4.conf.docker0.mc_forwarding = 2

sudo sysctl -p /etc/sysctl.d/99-multicast.conf

2.4 Create Startup Script

#!/bin/bash

#First wait for docker0 interface
while ! ip link show docker0 >/dev/null 2>&1; do
    echo "Waiting for docker0 interface..."
    sleep 1
done

#Now wait for docker containers to be running
cd /home/sudoku/iec450-test
while ! docker-compose ps | grep -q "Up"; do
    echo "Waiting for containers to start..."
    docker-compose up -d
    sleep 5
done

#Wait a bit more for network setup within containers
sleep 5

#Restart smcroute
systemctl restart smcroute

Make it executable:

sudo chmod +x /usr/local/bin/start-multicast.sh

Create systemd service /etc/systemd/system/start-multicast.service:

[Unit]
Description=Start Multicast Services
After=network-online.target docker.service
Wants=network-online.target docker.service
StartLimitIntervalSec=0

[Service]
Type=oneshot
RemainAfterExit=yes
WorkingDirectory=/home/sudoku/iec450-test
ExecStart=/usr/local/bin/start-multicast.sh
Restart=on-failure
RestartSec=10

[Install]
WantedBy=multi-user.target

Enable services:

sudo systemctl daemon-reload
sudo systemctl enable smcroute
sudo systemctl enable start-multicast

3. Application Setup

3.1 Monitor Application

mkdir -p ~/iec450-test/logs
cd ~/iec450-test

Create monitor.py:

#!/usr/bin/env python3
import socket
import struct
import json
import os
import logging
import time
from datetime import datetime

class IEC450Monitor:
    """IEC 61162-450 Monitor"""

    def __init__(self):
        # Get configuration from environment
        self.group = os.environ.get('GROUP', 'MISC')
        self.multicast_addr = os.environ.get('MULTICAST_ADDR', '239.192.0.1')
        self.port = int(os.environ.get('PORT', '60001'))

        # Setup logging
        logging.basicConfig(
            level=logging.INFO,
            format='%(asctime)s - %(levelname)s - [%(name)s] %(message)s',
            handlers=[
                logging.FileHandler(f'/app/logs/{self.group}.log'),
                logging.StreamHandler()
            ]
        )
        self.logger = logging.getLogger(self.group)

    def create_socket(self):
        """Create and configure multicast socket with error handling"""
        try:
            sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
            sock.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
            sock.setsockopt(socket.IPPROTO_IP, socket.IP_MULTICAST_TTL, 64)
            sock.setsockopt(socket.IPPROTO_IP, socket.IP_MULTICAST_LOOP, 1)
            sock.bind(('', self.port))

            group = socket.inet_aton(self.multicast_addr)
            iface = socket.inet_aton('0.0.0.0')
            mreq = struct.pack('4s4s', group, iface)
            sock.setsockopt(socket.IPPROTO_IP, socket.IP_ADD_MEMBERSHIP, mreq)

            self.logger.info(f"Socket created and joined multicast group {self.multicast_addr}")
            return sock

        except socket.error as e:
            self.logger.error(f"Failed to create socket: {e}")
            raise

    def validate_data(self, data):
        """Validate received data based on group type"""
        try:
            msg = json.loads(data)

            if 'timestamp' not in msg:
                return False, "Missing timestamp"
            if 'type' not in msg:
                return False, "Missing type"

            if self.group == 'TGTD':
                if 'mmsi' not in msg:
                    return False, "Missing MMSI"
                if 'position' not in msg:
                    return False, "Missing position"
            elif self.group == 'SATD':
                if 'heading' not in msg:
                    return False, "Missing heading"

            return True, "Valid"

        except json.JSONDecodeError:
            return False, "Invalid JSON"

    def start_monitoring(self):
        """Start monitoring multicast data with enhanced error handling"""
        self.logger.info(f"Starting monitor for {self.group} on {self.multicast_addr}:{self.port}")
        retry_count = 0
        max_retries = 5
        retry_delay = 5

        while True:
            sock = None
            try:
                sock = self.create_socket()
                retry_count = 0

                while True:
                    try:
                        data, addr = sock.recvfrom(1024)
                        data_str = data.decode()

                        is_valid, message = self.validate_data(data_str)
                        if is_valid:
                            self.logger.info(f"Received valid data from {addr}: {data_str}")
                            retry_count = 0
                        else:
                            self.logger.warning(f"Received invalid data from {addr}: {message}")

                    except socket.timeout:
                        continue
                    except socket.error as e:
                        self.logger.error(f"Socket error while receiving: {e}")
                        break

            except Exception as e:
                retry_count += 1
                self.logger.error(f"Error in monitoring (attempt {retry_count}/{max_retries}): {e}")

                if retry_count >= max_retries:
                    self.logger.critical(f"Maximum retry attempts ({max_retries}) reached. Exiting.")
                    raise

                self.logger.info(f"Waiting {retry_delay} seconds before retrying...")
                time.sleep(retry_delay)
                retry_delay = min(retry_delay * 2, 60)

            finally:
                if sock:
                    try:
                        sock.close()
                    except:
                        pass

def main():
    monitor = IEC450Monitor()
    monitor.start_monitoring()

if __name__ == '__main__':
    main()

Create Dockerfile:

FROM python:3.9-slim

WORKDIR /app

COPY monitor.py .

RUN mkdir -p /app/logs

CMD ["python", "monitor.py"]

Create docker-compose.yml:

version: '3'

services:
  monitor-1:
    build:
      context: .
      dockerfile: Dockerfile
    container_name: iec450-monitor-1
    environment:
      - GROUP=TGTD
      - MULTICAST_ADDR=239.192.0.2
      - PORT=60002
    network_mode: bridge
    restart: unless-stopped
    volumes:
      - ./logs:/app/logs

  monitor-2:
    build:
      context: .
      dockerfile: Dockerfile
    container_name: iec450-monitor-2
    environment:
      - GROUP=TGTD
      - MULTICAST_ADDR=239.192.0.2
      - PORT=60002
    network_mode: bridge
    restart: unless-stopped
    volumes:
      - ./logs:/app/logs

  monitor-3:
    build:
      context: .
      dockerfile: Dockerfile
    container_name: iec450-monitor-3
    environment:
      - GROUP=TGTD
      - MULTICAST_ADDR=239.192.0.2
      - PORT=60002
    network_mode: bridge
    restart: unless-stopped
    volumes:
      - ./logs:/app/logs

Start the application:

cd ~/iec450-test
docker-compose up -d

4. Testing

4.1 Monitor Logs

docker-compose logs -f

4.2 Check Multicast Routes

ip mroute show

Expected output:

(172.31.1.111,239.192.0.2) Iif: ibs Oifs: docker0 State: resolved

4.3 Verify IGMP Memberships

netstat -g

5. Troubleshooting

5.1 SMCRoute Issues

#Check SMCRoute status
systemctl status smcroute

#View SMCRoute logs
journalctl -u smcroute

#Manually restart if needed
systemctl restart smcroute

5.2 Docker Issues

#Check container status

docker ps -a

#View container logs

docker logs iec450-monitor-1

#Restart containers

docker-compose restart

5.3 Network Issues

#Check multicast forwarding settings

sysctl -a | grep mc_forwarding

#Monitor multicast traffic

tcpdump -i any ip multicast

6. Security Notes

1. Multicast traffic is limited to 239.192.0.0/24 range

2. TTL is set to 64 to limit network scope

3. Only specific interfaces (ibs and docker0) are enabled for multicast

4. Access to eth1 should be physically secured

5. Docker containers run with restart policy to ensure service availability


#!/usr/bin/env python3
import socket
import json
import time
import argparse
from datetime import datetime

class IEC450Sender:
    """IEC 61162-450 Data Sender"""

    GROUPS = {
        'MISC': ('239.192.0.1', 60001),
        'TGTD': ('239.192.0.2', 60002),
        'SATD': ('239.192.0.3', 60003),
        'NAVD': ('239.192.0.4', 60004),
        'VDRD': ('239.192.0.5', 60005)
    }

    def __init__(self):
        self.sockets = {}

    def find_interface_ip(self):
        """Find IP address in 172.31.x.x network"""
        hostname = socket.gethostname()
        ip_addresses = socket.gethostbyname_ex(hostname)[2]
        print("\nAvailable IP addresses:", ip_addresses)

        for ip in ip_addresses:
            if ip.startswith('172.31.'):
                print(f"Found matching IP: {ip}")
                return ip

        print("No IP found in 172.31.x.x network")
        return None

    def create_socket(self, multicast_addr, port):
        """Create and configure multicast socket"""
        # Create UDP socket
        sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
        sock.settimeout(0.2)

        # Set multicast TTL to 64 as per IEC 61162-450 spec
        sock.setsockopt(socket.IPPROTO_IP, socket.IP_MULTICAST_TTL, 64)

        # Enable multicast loopback
        sock.setsockopt(socket.IPPROTO_IP, socket.IP_MULTICAST_LOOP, 1)

        # Find interface IP
        interface_ip = self.find_interface_ip()

        if interface_ip:
            # Bind to specific interface
            sock.bind((interface_ip, 0))
            # Set multicast interface
            sock.setsockopt(
                socket.IPPROTO_IP,
                socket.IP_MULTICAST_IF,
                socket.inet_aton(interface_ip)
            )
            print(f"Socket bound to interface: {interface_ip}")
        else:
            # Fallback to default interface
            sock.bind(('0.0.0.0', 0))
            print("Socket bound to default interface")

        return sock

    def generate_test_data(self, group):
        """Generate test data for specific group"""
        timestamp = datetime.now().isoformat()

        if group == 'TGTD':
            return {
                "timestamp": timestamp,
                "type": "AIS",
                "mmsi": "123456789",
                "position": {"lat": 60.123, "lon": 5.123},
                "sog": 12.5,
                "cog": 180.0
            }
        elif group == 'SATD':
            return {
                "timestamp": timestamp,
                "type": "HEADING",
                "heading": 182.5,
                "rate": 0.5
            }

        return {
            "timestamp": timestamp,
            "type": "TEST",
            "group": group
        }

    def send_data(self, group, interval=1.0):
        """Send data to specified multicast group"""
        if group not in self.GROUPS:
            print(f"Unknown group: {group}")
            return

        multicast_addr, port = self.GROUPS[group]
        print(f"\nPreparing to send {group} data to {multicast_addr}:{port}")

        sock = self.create_socket(multicast_addr, port)
        print(f"Socket created successfully")

        sequence = 0
        try:
            while True:
                data = self.generate_test_data(group)
                data['sequence'] = sequence
                message = json.dumps(data)

                sock.sendto(message.encode(), (multicast_addr, port))
                print(f"Sent message {sequence} to {group} ({multicast_addr}:{port})")

                sequence += 1
                time.sleep(interval)

        except KeyboardInterrupt:
            print(f"\nStopping {group} sender...")
        except Exception as e:
            print(f"Error sending data: {e}")
        finally:
            sock.close()

def main():
    parser = argparse.ArgumentParser(description='IEC 61162-450 Data Sender')
    parser.add_argument('--group',
                      choices=IEC450Sender.GROUPS.keys(),
                      required=True,
                      help='Transmission group')
    parser.add_argument('--interval',
                      type=float,
                      default=1.0,
                      help='Send interval in seconds')

    args = parser.parse_args()

    sender = IEC450Sender()
    sender.send_data(args.group, args.interval)

if __name__ == '__main__':
    main()

To run execute:

python.exe .\sender.py --group TGTD

8. Known Issues
