This guide provides step-by-step instructions on how to safely upload brand asset files from a Windows local drive (C:) to the device's /app/oem directory for custom branding configuration.

1. Connect to the Device

Use a terminal tool (e.g., PowerShell, CMD, Xshell) to connect via SSH, or use an SFTP client (e.g., WinSCP, FileZilla).Check if the directory exists:

• Troubleshooting Note: If an SSH key conflict error occurs during connection, run:

2. Verify and Create the Target Directory

Run the following commands in the device terminal to ensure the target directory exists.

• Check if the directory exists:

      ls -ld /app/oem

(If the system returns "No such file or directory", the folder does not exist.)

• Create the directory (if missing):

      sudo mkdir -p /app/oem

3. Copy OEM Brand Assets (Upload from Local C: Drive)

Assuming your files are located at C:\OEM_Files\ on your local PC, the device IP address is 192.168.1.100, and your username is root (or custom sudo user).

Method A: Using SCP Command (Recommended for Windows PowerShell / CMD)

Execute the command in your local computer's terminal (NOT inside the SSH session). Note the path formatting: Windows paths use backslashes \ or double forward slashes //, while remote Linux paths use forward slashes /.

Command Example (Batch Upload All Files):

scp C:\OEM_Files\logo_login.png C:\OEM_Files\logo_index.png C:\OEM_Files\favicon.ico C:\OEM_Files\style.js C:\OEM_Files\copyright.js sudoeg@192.168.1.100:/app/oem/

💡 Tips:

• Replace sudoeg with your actual username (create a sudo account in the ROS Pro system if needed).
  • If the user sudoeg encounters permission issues, grant permission on the device:

sudo chown -R sudoeg:sudoeg /app/oem/

• Replace 192.168.1.100 with your device's actual IP address.
• Replace C:\OEM_Files with your local folder path.
• When prompted, enter your device login password to initiate the transfer.

Method B: Using WinSCP (Graphical User Interface)

If you prefer a GUI tool over the command line:

1. Open WinSCP and log in using the device's IP, username, and password.
2. Navigate to C:\OEM_Files\ in the left panel (Local PC).
3. Navigate to /app/oem/ in the right panel (Remote Device).
4. Select all 5 required files from the left panel and drag them into the right panel.

Required File Checklist (All Required):

• logo_login.png — Custom login page logo (400 × 90 px)
• logo_index.png — Custom top-left header logo for the homepage (180 × 47 px)
• favicon.ico — Custom browser tab icon (48 × 48 px)
• style.js — Custom styling script (can be copied from default system /www directory)
• copyright.js — Custom copyright script (can be copied from default system /www directory)

How to Obtain Default style.js and copyright.js Files

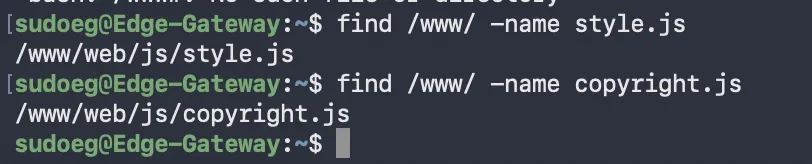

1. Locate the files on the device:

      find /www/ -name style.js
      find /www/ -name copyright.js

2. Copy the files to the /app/oem directory:

      cp /www/path/to/style.js /app/oem/
      cp /www/path/to/copyright.js /app/oem/

4. Reboot the Device

After uploading all files, execute a reboot command in the device's SSH terminal to apply changes.

• Reboot Command:

reboot

(or sudo reboot, depending on user privileges)

⚠️ Important Notes

1. Do Not Modify System Files: Only copy the required new files into /app/oem/. DO NOT delete or modify any existing system files.
2. Exact File Names Required: File names must match the checklist exactly (case-sensitive). Incorrectly named files will not be recognized by the system.
3. Verification: After rebooting, clear your browser cache and access the WebUI to confirm that the new logos and copyright information are displayed correctly.
