R1510 Interface Description

R1510 Interface Description

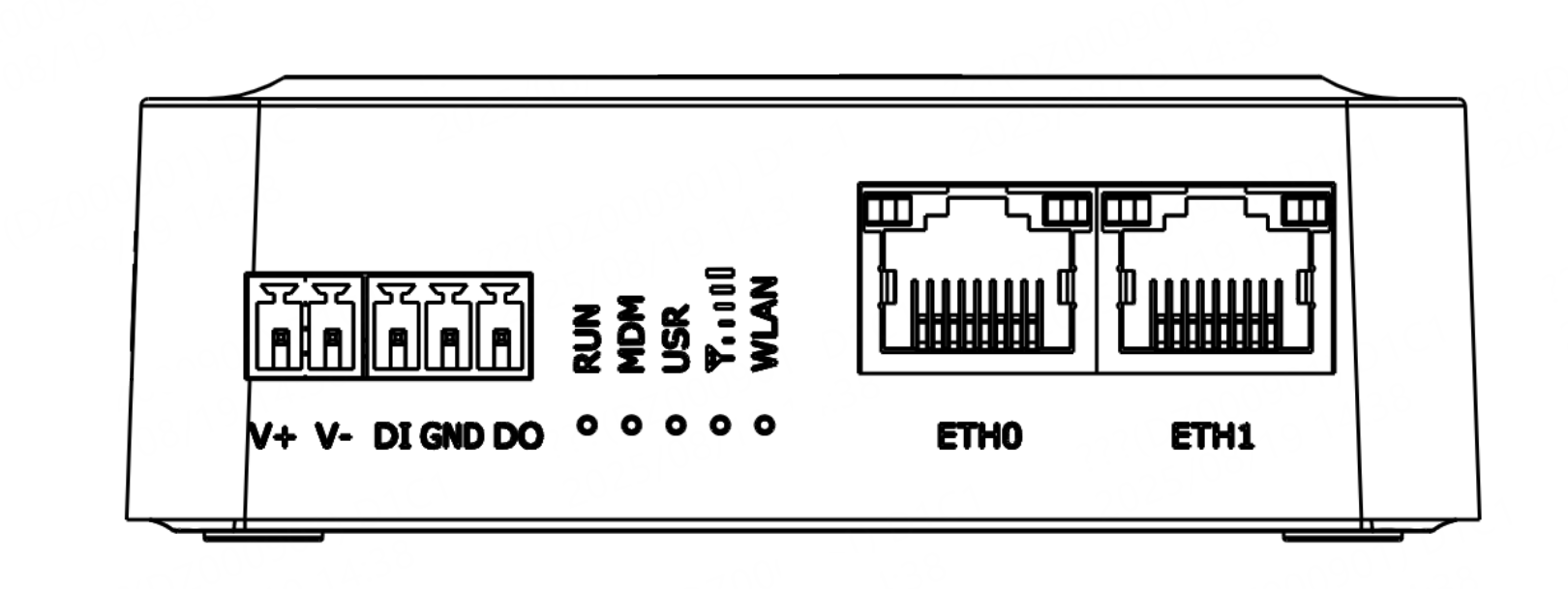

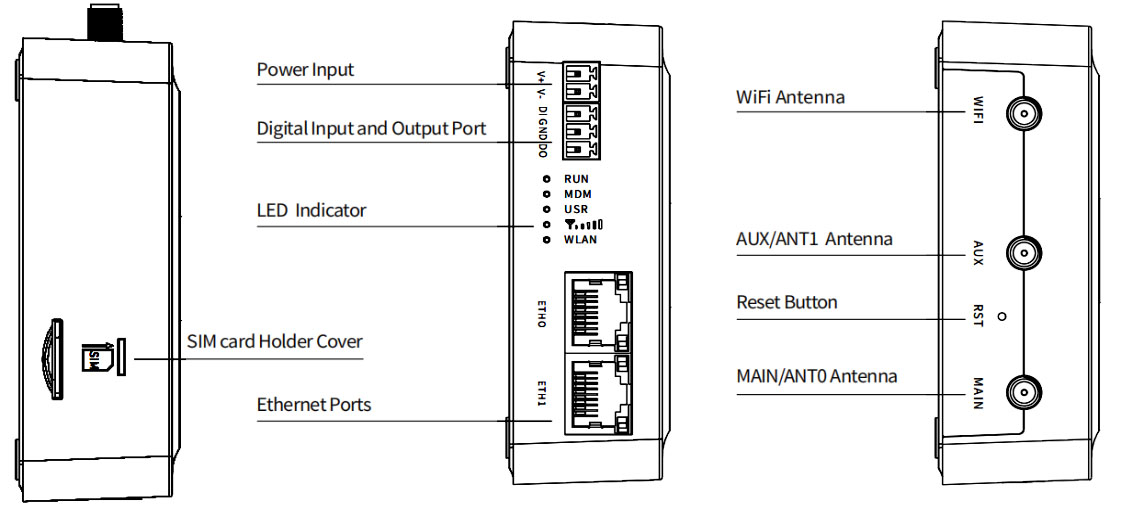

Panel Layout


        Side View                                                                      Front View                                                              Back View
​

1. Power supply

2PIN 3.5mm pitch terminal block.




PIN
Power
DI/DO
Description
1
V+
-
Power input Positive, 9-36VDC
2
V-
-
Power input Negative
3
-
DI
Digital input (Maximum absolute voltage: 30V. Maximum absolute current: 20mA)
4
-
GND
Ground
5
-
DO
Digital output (Maximum absolute voltage: 30V. Maximum absolute current: 20mA)

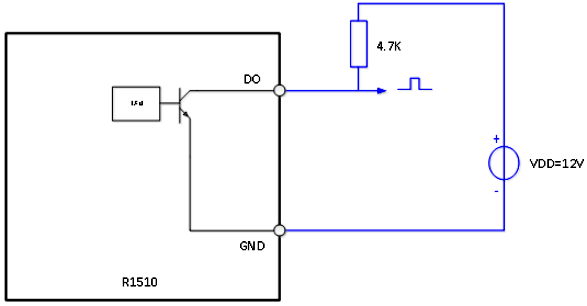

DI/DO Internal Diagram

2. LED Indicator

Name
Color
StatusDescription
RUN
Green
On, solid
Router is powered on (System is initializing)
On, blinking
Router starts operating
Off
Router is powered off
MDM
Green
On, solid
Link connection is working
On, blinking
Data is sent and received
Off
Link connection is not working
RSSI
Green
On, solid
Received Signal Strength Indication 20 to 31 dB (Strong signal)
On, blinking
Received Signal Strength Indication 10 to 19 dB (Moderate signal)
Off
No signal or Received Signal Strength Indication 1 to 9 dB (Weak signal)
WLAN
Green
On, solid
Wi-Fi is enabled and working properly
On, blinking
Data is being transferred
Off
Wi-Fi is disabled or not working properly
USR
Green
User-defined LED. It can be used to indicate SIM card, OpenVPN, IPSec connection status, or status in self-developed applications. You can choose the display type of USR LED.

3. Reset Button

Function
Operation
Reboot
Press and hold the RST button for 2~ 5 seconds under the operating status.
Restore to default configuration
Press and hold the RST button for 5~10 seconds, the RUN LED starts blinking quickly, the router will restore to default configuration.
Restore to factory default settings
Once the operation of restoring default configuration is performed twice within one minute, the router will restore to factory default settings.

4. Ethernet Port

Ethernet LED Indicator
Status
Description
Link indicator
(Green)
On, solid
Connection is established
On, blinking
Data is being transferred
Off
Connection is not established
