E2C Factory软件安装手册
软件管理
软件获取
若网关出厂时没有预装E2C Factory软件，您可以自行按照4.2节的步骤进行安装，安装包可联系销售或者客服获取。
安装软件
在鲁邦通的边缘计算网关中，可通过网关控制台直接在线安装数采软件，具体操作步䠫如下
- 准备
准备好必要的安装包，如：e2c-factory-x.x.x.x.rpk
- 步骤1
网关上电，打开浏览器访问 http://192.168.0.1 。输入用户名（缺省为admin）与密码（缺省为admin）进行登录

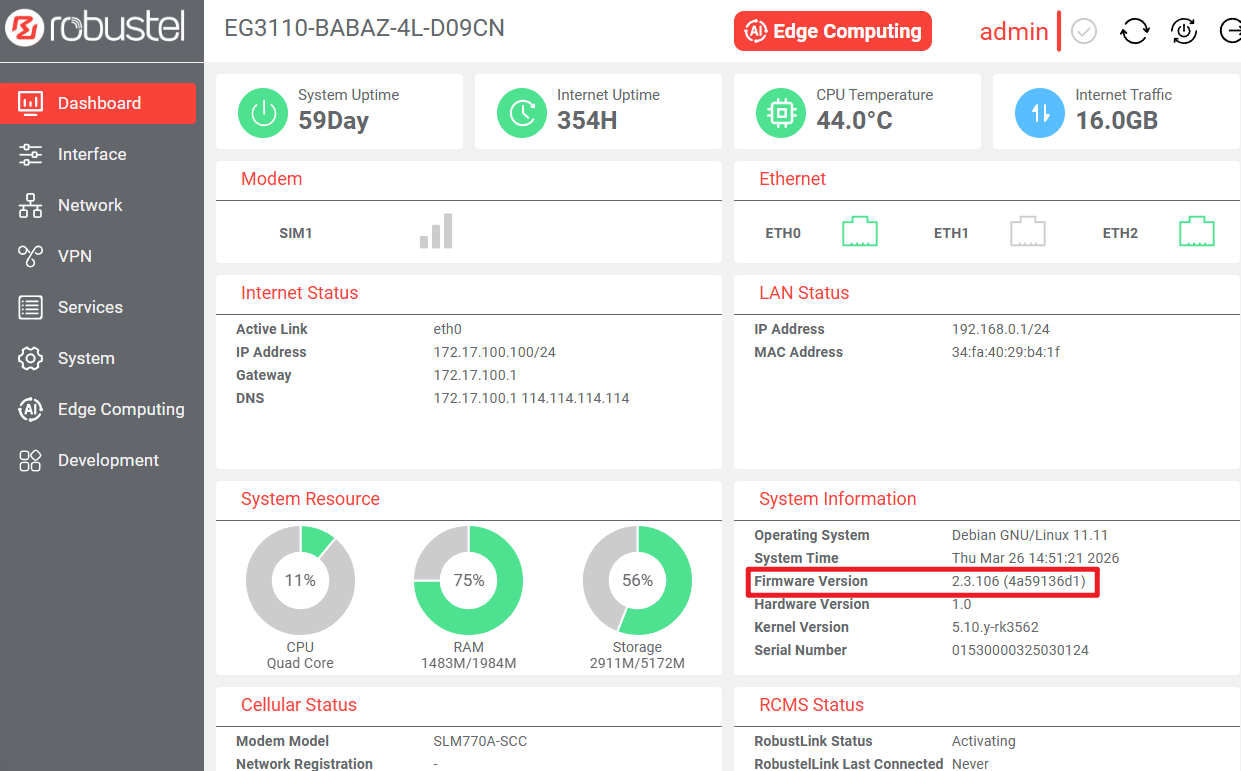

可从网关WEB首页中查看到固件版本信息，如下图所示，固件版本要求：>= 2.3.106
注意： 若版本较低，请联系客服或销售人员获取最新的固件进行升级，具体的升级操作可参考《ROS Pro用户手册》
- 步骤2

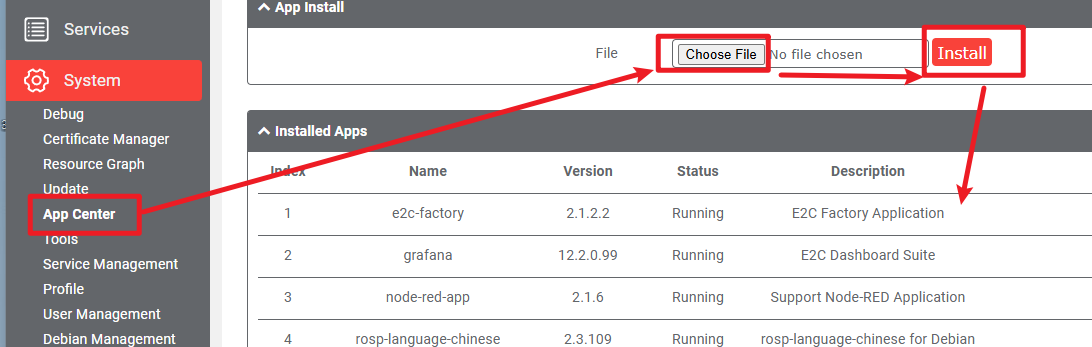

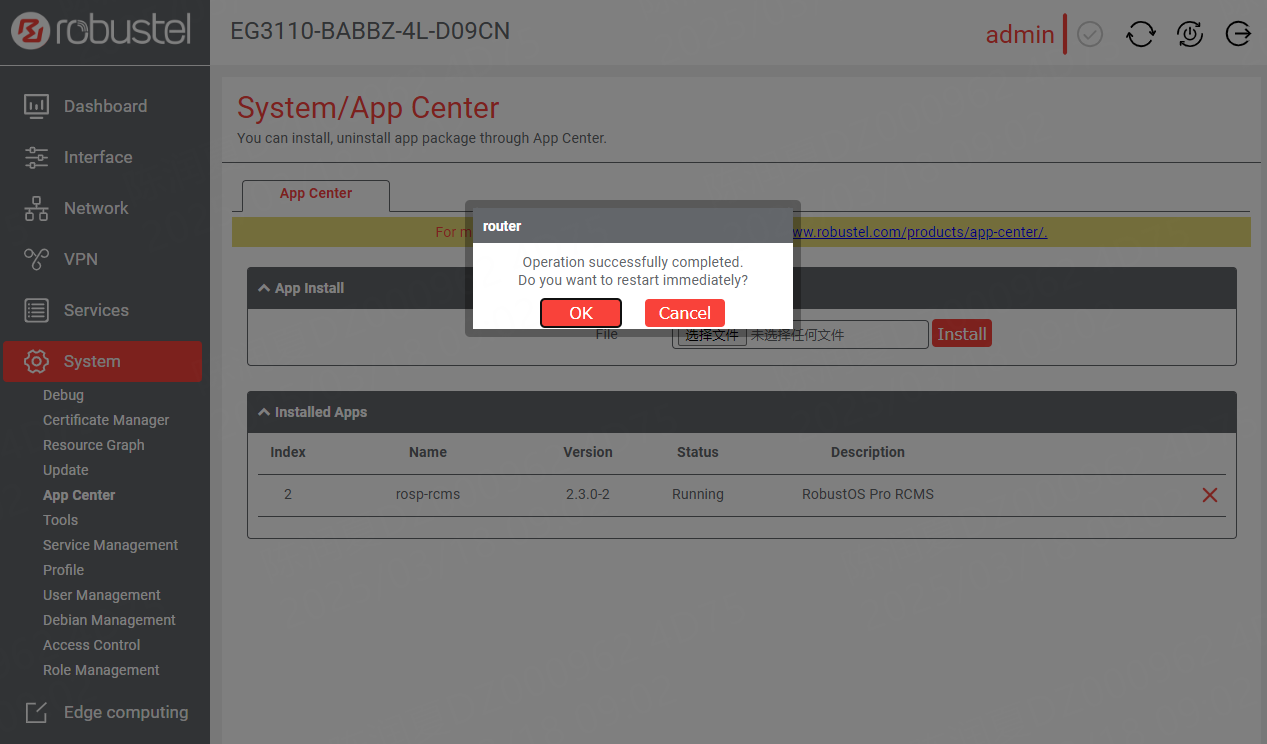

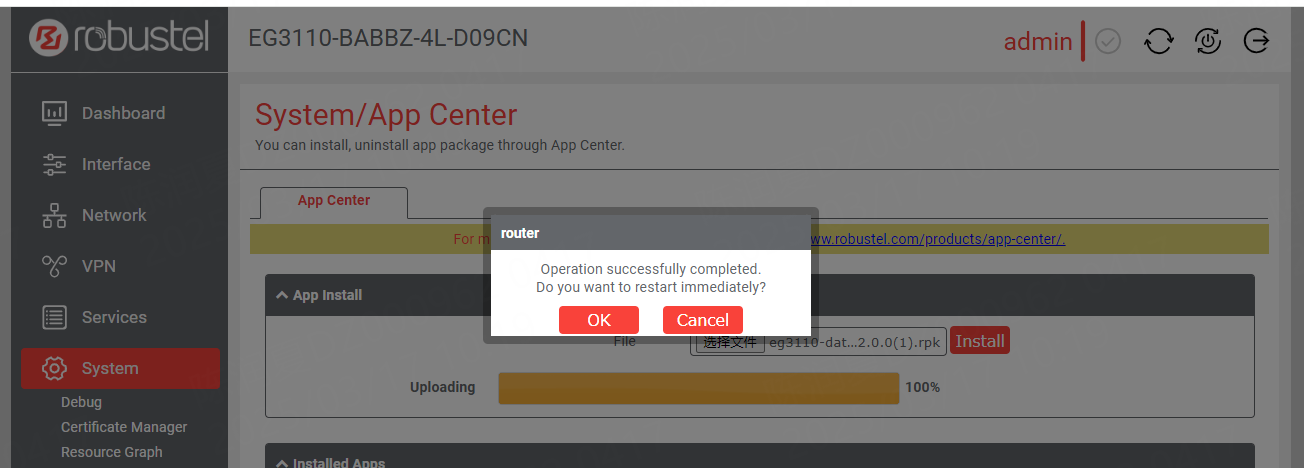

点击【System系统】-【App Center应用中心】，选择文件，点击【install安装】，点击弹窗“OK”按钮即可完成安装，设备将会自动重启，重新登录并再次进入该页面即可看到APP已经安装成功。
卸载软件
可以在【System系统】-【App Center应用中心】中选中e2c-factory进行卸载操作。

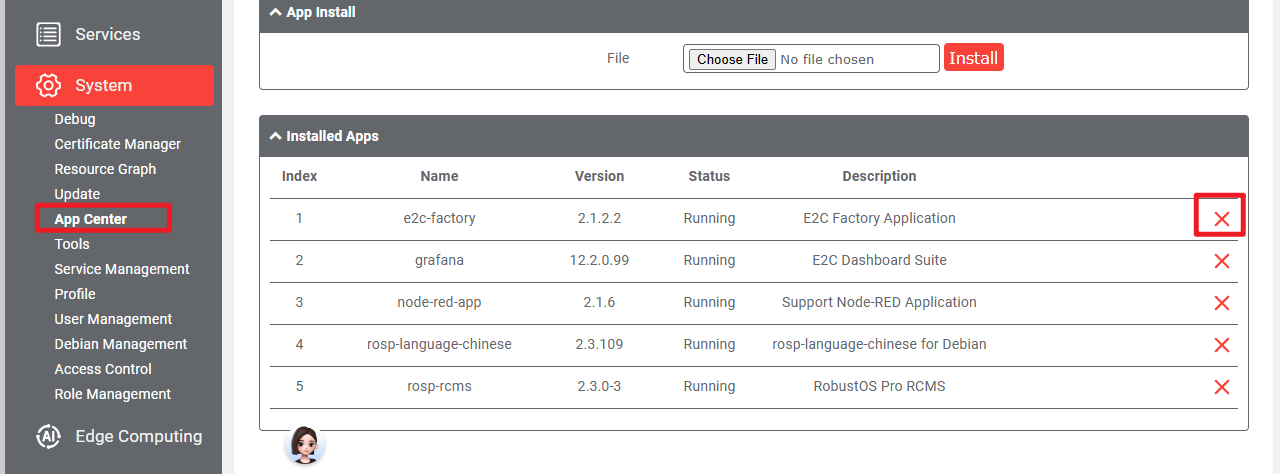

卸载APP：点击【System】-【App Center】，点击”X”。
点击“OK”按钮即可完成卸载，设备将会自动重启。
重新登录并进入该页面可见到APP已经卸载成功。
启用与禁用
在边缘计算网关中，默认启用数采软件。

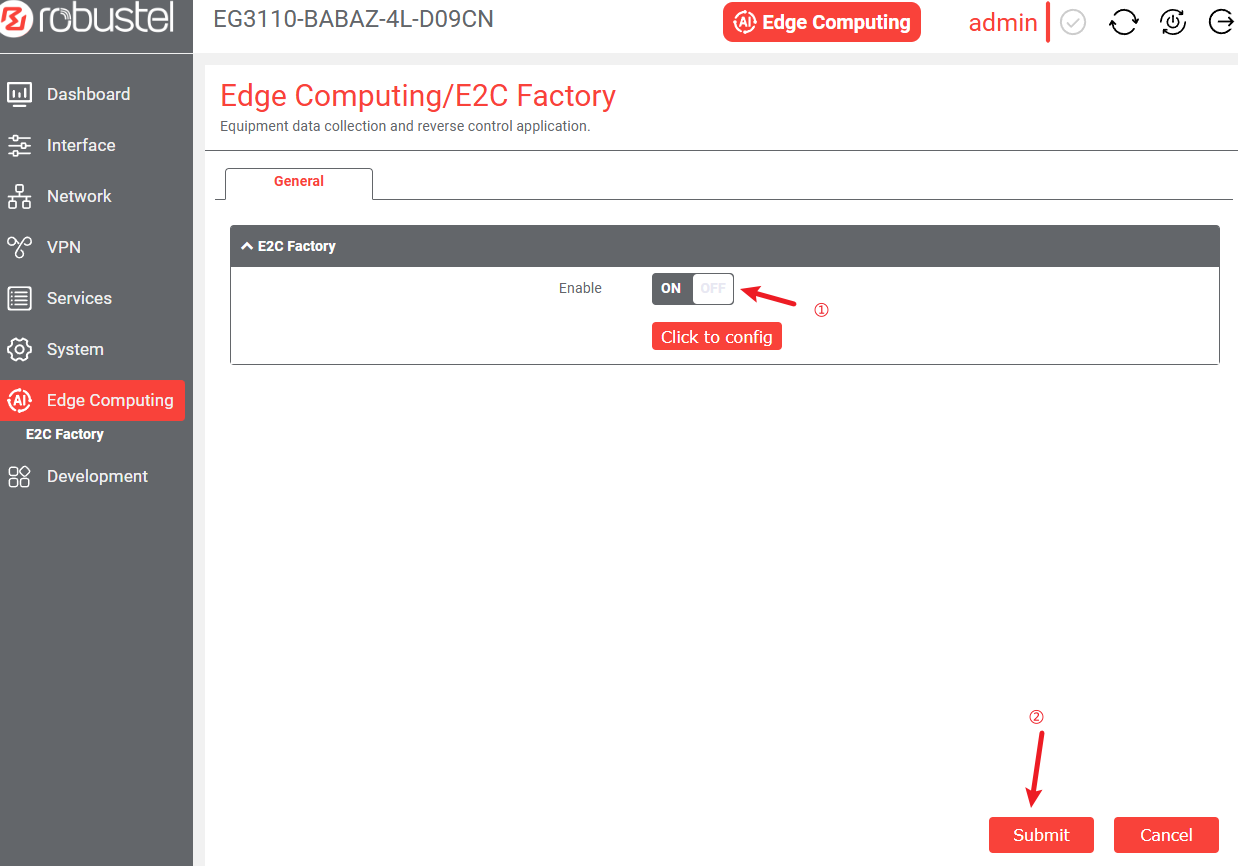

点击【Edge computing边缘计算】-【E2C Factory】的Enable开关可进行启用和禁用切换。
进入软件主界面

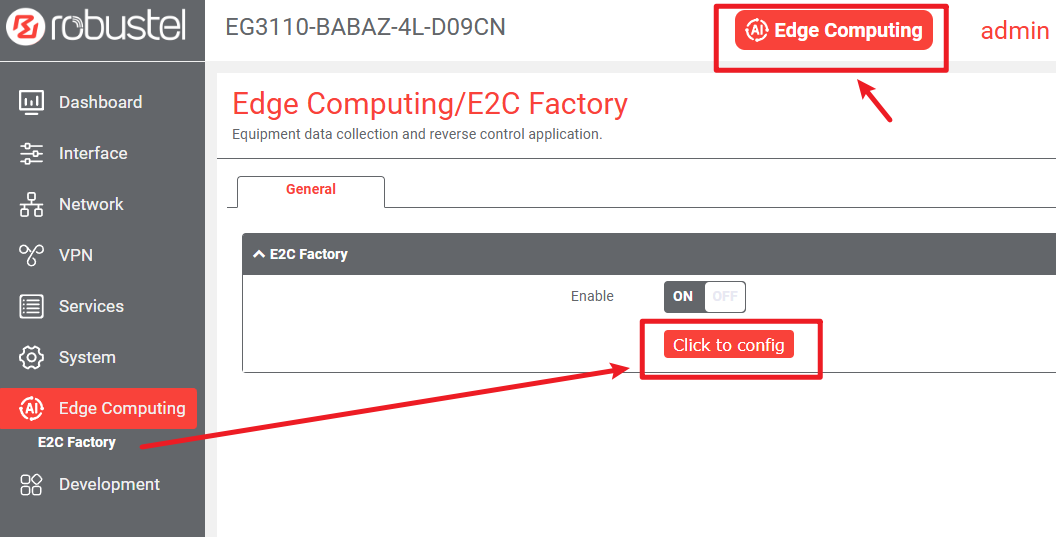

安装完成后，可在左侧菜单栏中找到【Edge Computing边缘计算】或顶部的【Edge Computing边缘计算】 菜单项，点击可打开E2C Factory软件的操作页面。

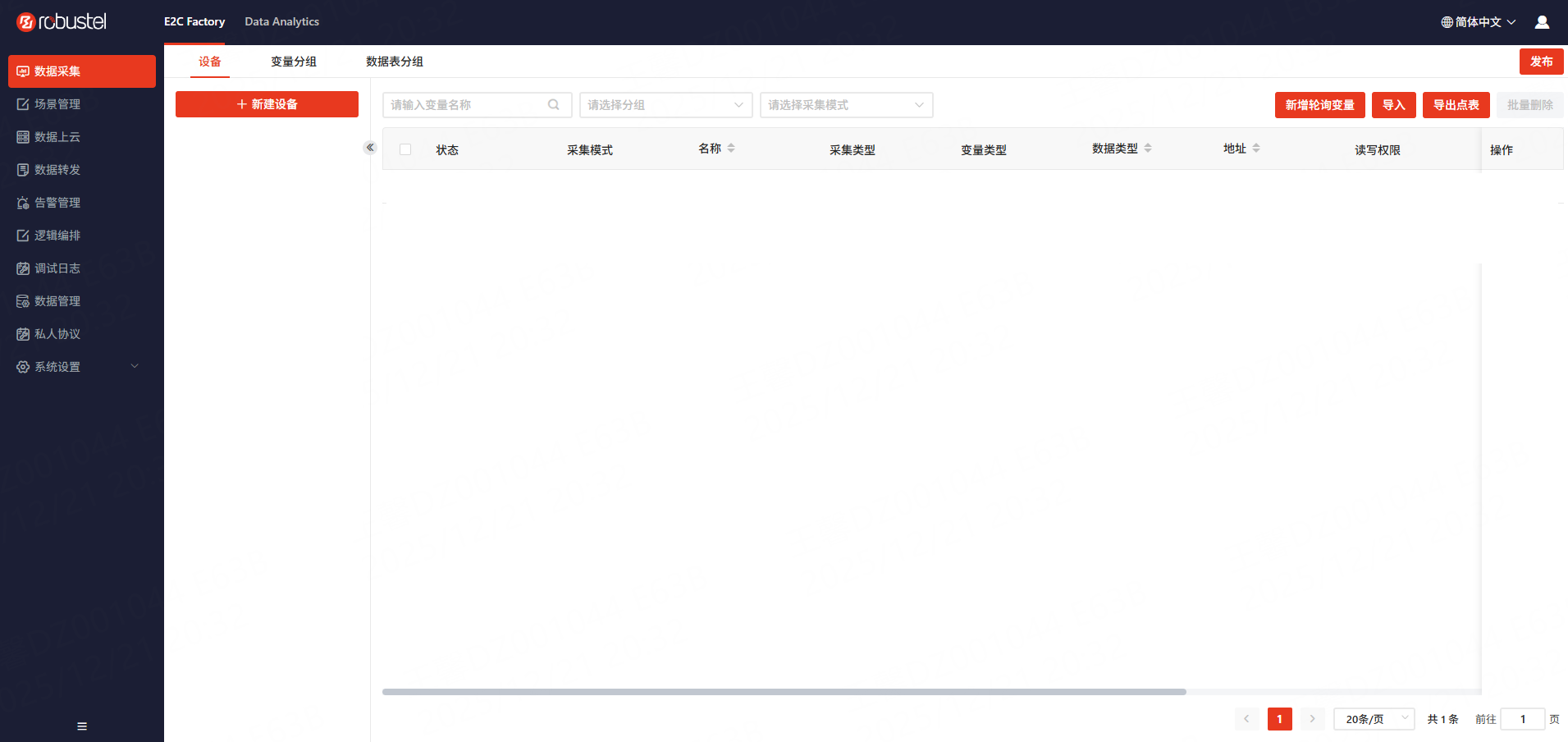

操作页面将在新的标签页打开，呈现如下图所示的软件主页面。
