How to Connect a Robustel Gateway to RCMS

How to Connect Your Device to RCMS

Overview

This guide explains how to connect a Robustel device to Robustel Cloud Manager Service (RCMS) for centralized remote management and monitoring. It applies to users who need to prepare device connectivity, add a gateway to the RCMS platform, and enable the RCMS connection through the WebUI, CLI, or SMS. By following the article, users will confirm internet access, register the device with serial and MAC or IMEI information, enable RCMS, and verify that the device appears online in the cloud dashboard.

What You'll Need

Hardware List:

  1. 1 x Robustel Gateway (e.g., R1520)
  2. 1 x Active SIM card with data and SMS capabilities
  3. Power supply and relevant cables

Software/Firmware:

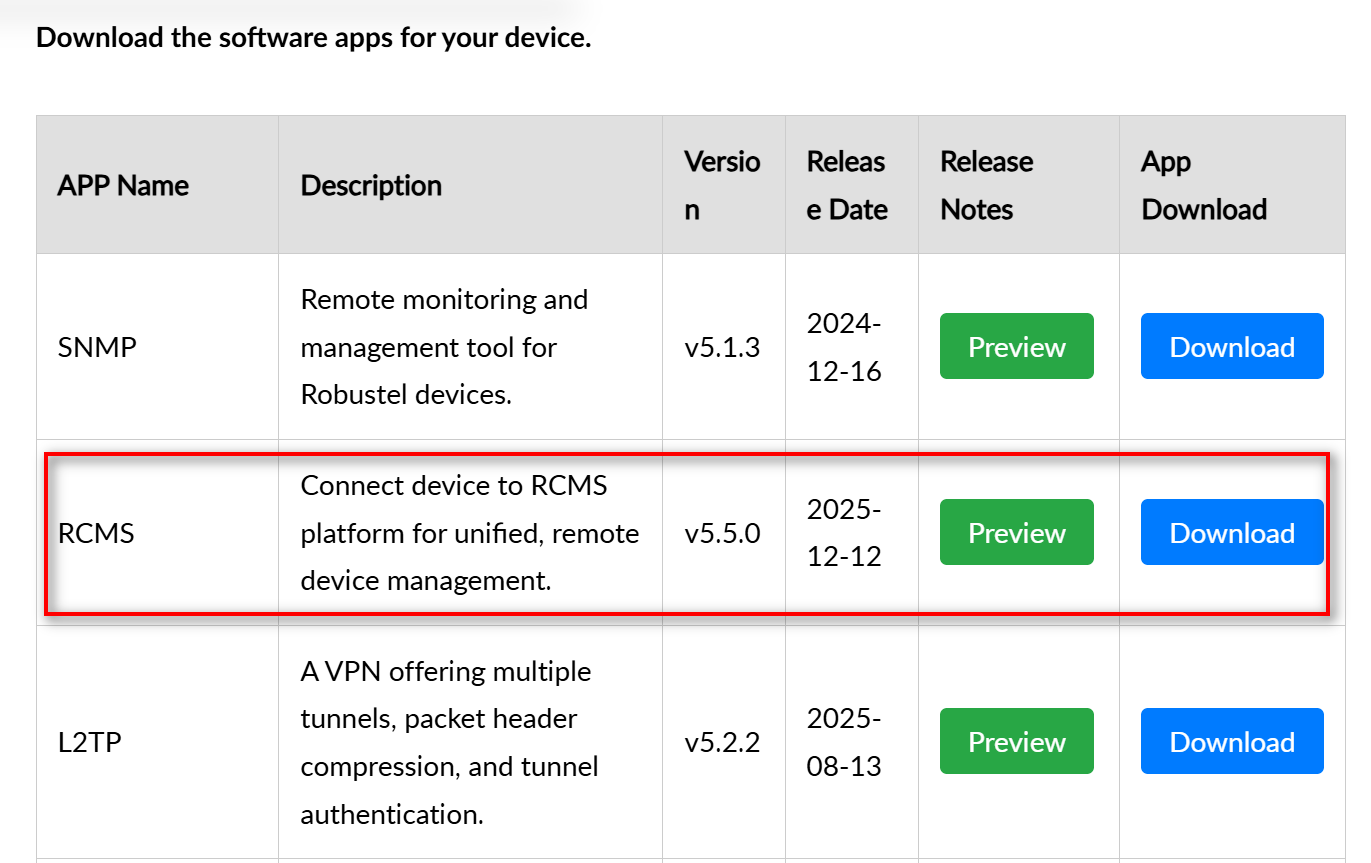

RCMS APP: Installed by default. The configuration path is located at WEBUI > Services > RCMS. If missing, download it from the Robustel Support Portal > Device Series > Model > APP Download

Account Access:  Valid login credentials for the RCMS Cloud Platform

Step-by-Step Configuration Guide

Step 1: Ensure Internet Connectivity

1. Insert the SIM card into the device.
2. By default, the WWAN link is configured to connect automatically.
3. Verify the connection by logging into the WebUI and checking the status page for an assigned IP address.

Step 2: Add Device to the RCMS Platform

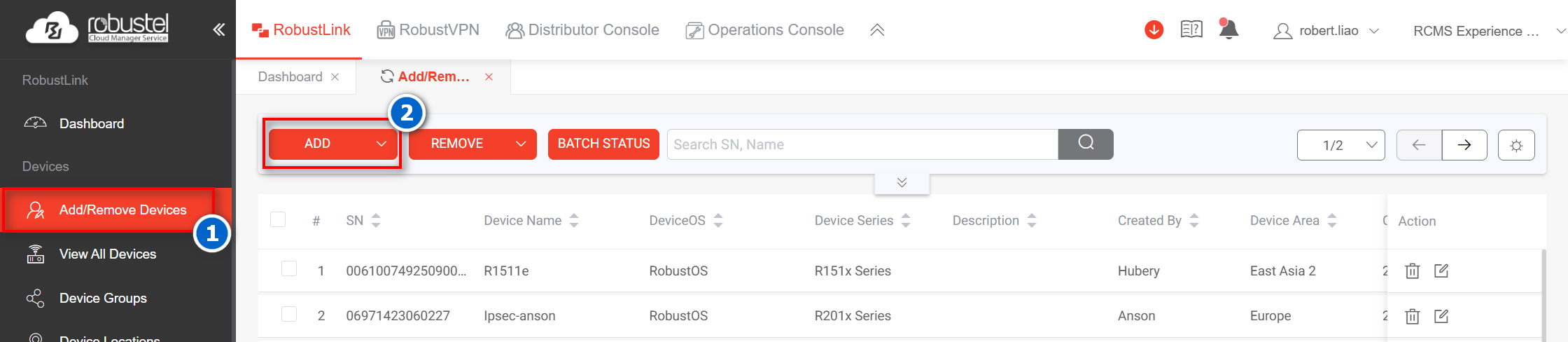

2. Navigate to Add/Remove Devices and click the ADD button.

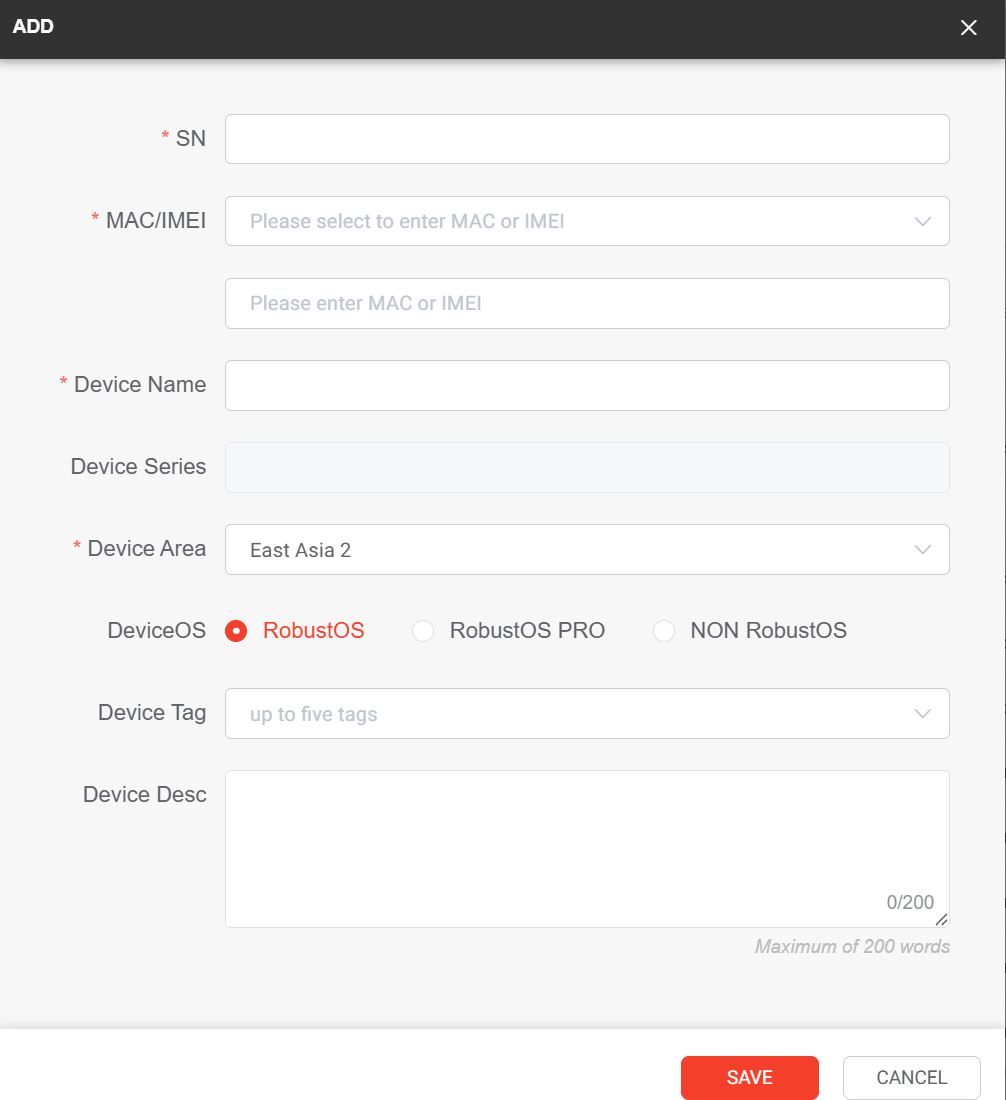

3. Enter the device SN and MAC (or IMEI), found on the device label.
4. Select the Device Area (e.g., East Asia, Europe, North America) closest to your region for optimal performance.
5. Select the correct Device OS and click Save.

Step 3: Enable RCMS on the Device

You can enable RCMS using one of the three methods below:

Method A: Via WebUI

1. Login to the device WebUI (default: https://192.168.0.1).
2. Navigate to Services > RCMS.
3. Set the Enable button to ON.
4. Click Submit > Save and Apply.

Method B: Via CLI (SSH)

1. Access the device CLI via SSH.
2. Execute the following commands:
  1. set rcms enable true
  2. config save_and_apply

Method C: Via SMS

1. Send a text message to the device's SIM card using the following format:
  1. username:password;set rcms enable true;config save_and_apply
2. If successful, the device will reply with "OK".


Verification & Testing

To confirm the connection is successful:
1. Check Device Status: Navigate to the WebUI status page to see if the RCMS state is "Connected".
2. Check RCMS Portal: In the RCMS cloud dashboard, verify the device icon has turned green (Online).


Troubleshooting / FAQ

Q1: Why does the debug log show "Device IOT HUB try register failed"?
A: This usually indicates a communication error. Common causes include:
  1. No Internet Access: Go to System > Tool > Ping and try to ping 8.8.8.8. If it fails, check your SIM card (ensure it is not a VPDN card without internet access) or your office firewall.
  2. NTP Sync Failure: RCMS uses SSL, which requires an accurate system time. Check Services > NTP to ensure the time is synced.
  3. Wrong Server Address: Ensure the RCMS Environment is set to RCMS Cloud International under Services > RCMS.

Q2: What information is needed to add a device to RCMS?
A: Prepare the device serial number and MAC or IMEI from the device label as stated in the article
Q3: What should I check if the device does not appear online?
A: Check internet access NTP synchronization and the RCMS environment setting described in the troubleshooting section
Q4: Can RCMS be enabled without the WebUI?
A: Yes. The article lists WebUI CLI and SMS methods for enabling RCMS

Conclusion

After completing this guide, the Robustel gateway should be registered in RCMS and show an online status when connectivity and configuration are correct. Users should verify the RCMS state in the device WebUI and confirm that the device icon appears online in the RCMS dashboard. If registration fails, use the troubleshooting checks in the original article before changing any configuration method.
