Overview

This document provides step-by-step instructions for restoring your Robustel gateway to its original factory default settings. This process will erase all current configurations (including network settings, user accounts, and custom parameters) and restore the device to its initial state. This operation cannot be undone; please ensure you have backed up important configuration files before proceeding.

What You Will Need

• A computer connected to the Robustel device (via Ethernet or Wi-Fi).
• Administrator credentials (username: admin).
• A backup of the current configuration (recommended).

Step-by-Step Guide

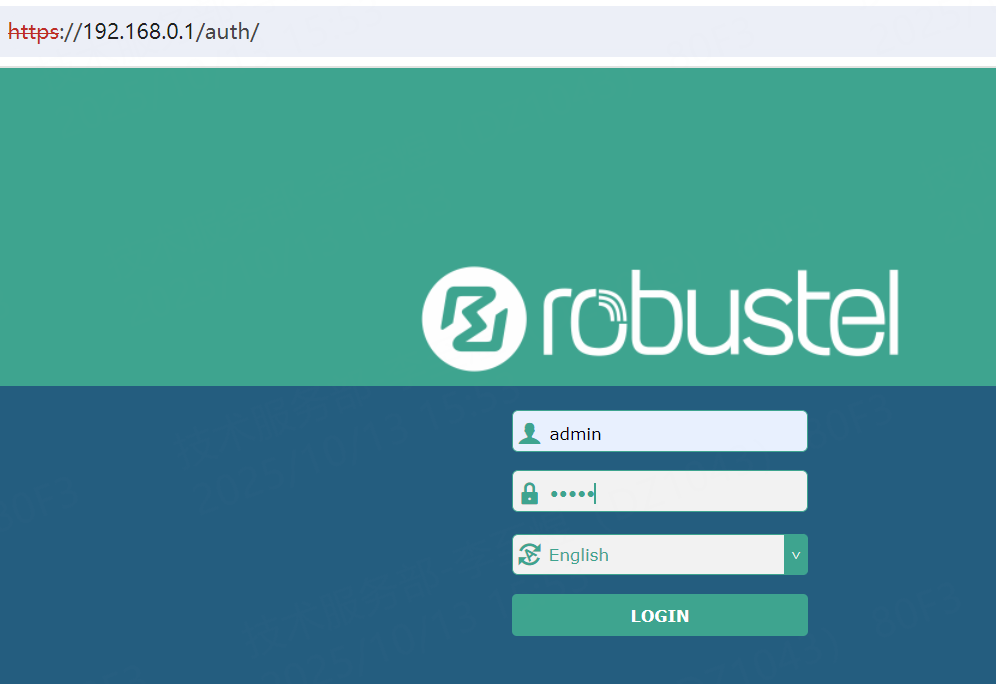

Step 1: Access the Web Management Interface

1. Open a web browser and enter the IP address of your Robustel device (e.g., 192.168.0.1).
2. Log in with your administrator account (default username: admin).

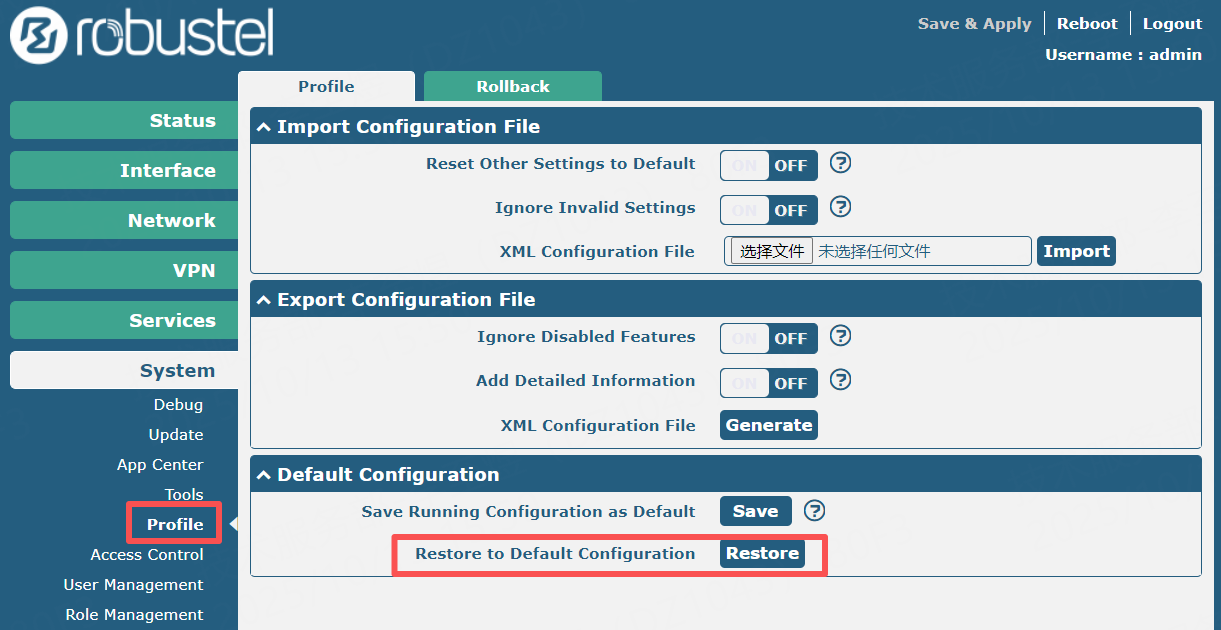

Step 2: Navigate to the Parameter File Section

1. In the left-hand navigation menu, expand the 【System】 section.
2. Click on 【Profile】 to access the configuration management page.

Step 3: Perform Factory Reset

1. Locate the "Default Configuration" section (clearly marked with a red box in the interface).
2. Click the 【Restore】 button to initiate the factory reset process.

Verification

1. After the device reboots, attempt to log in using the default credentials (username: admin, password: <check device documentation for default password>).
2. Verify that all custom configurations have been removed and settings have been returned to their factory state.

Troubleshooting

Q1: What should I do if I forgot to back up my configuration before resetting?

A1: If you've already performed the reset without backing up, previous configurations cannot be recovered. You will need to reconfigure the device manually.

Q2: The device is not accessible after reset. What could be wrong?

A2: After reset, the device returns to its default IP address (usually 192.168.0.1). Ensure your computer is on the same subnet and try accessing the device again.

Q3: The restore process was interrupted. What should I do?

A3: If the reset process was interrupted, the device may be in an unstable state. Wait for the device to complete rebooting, then attempt the factory reset process again.
